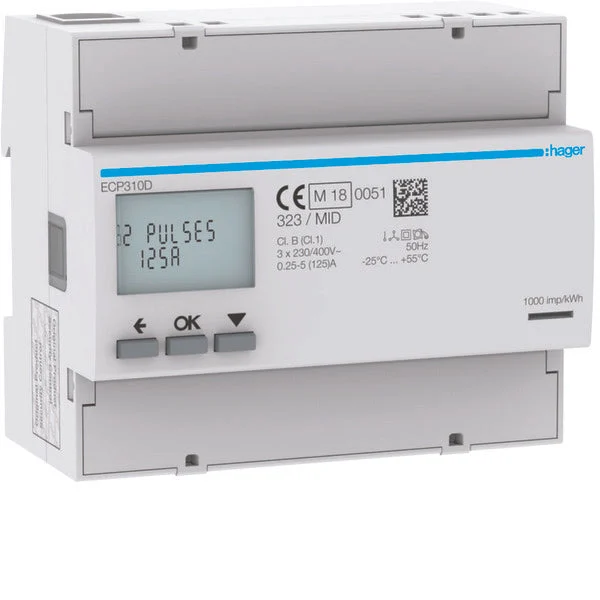

This KWH meter from Hager is a 3-phase energy meter suitable for direct metering, with multi-rate. In addition, the maximum current is 125A. The meter can manage 2 rates through the 230 VAC binary rate input and 8 rates through the digital communication interface. For interfacing with automatic data processing systems, this energy meter is equipped with an S0 pulse output. You can connect the 3-phase energy meter with direct connection directly to measure consumption in sub-distributions.
Specifications
Type of meter : Electronic
Nominal current (In) (A) : 125
Max. current (Imax) (A) : 125
Nominal voltage (Un) N-L (V) : 92 V to 276 V
Nominal voltage (Un) L-L (V) : 160 V to 480 V
Frequency (Hz) : 45 Hz to 65 Hz
Accuracy class : B
Pole type : Four conductor
Model : Direct measurement
Energy type : Effective power and blind power
Suitable for : Purchase/supply
Tariff type : Two-tariff
Tariff control : External
Measurement type load profile : No
Escapement mechanism : Yes
Calibrated : Yes
Approval : Measuring Instruments Directive
Pulse output : Electrical
Pulse type : S0
Pulse rate (Imp/kWh (kvarh)) : 1 Imp/kWh (kvarh) to 200 Imp/kWh (kvarh)
Type of indication : Digital
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 6
Width (mm) : 107
Depth (mm) : 60
Height (mm) : 92
Type of interface : None
EEC40 signature : No
With lock code : No
Number of positions total (counter) : 9
Degree of protection (IP) : IP20
