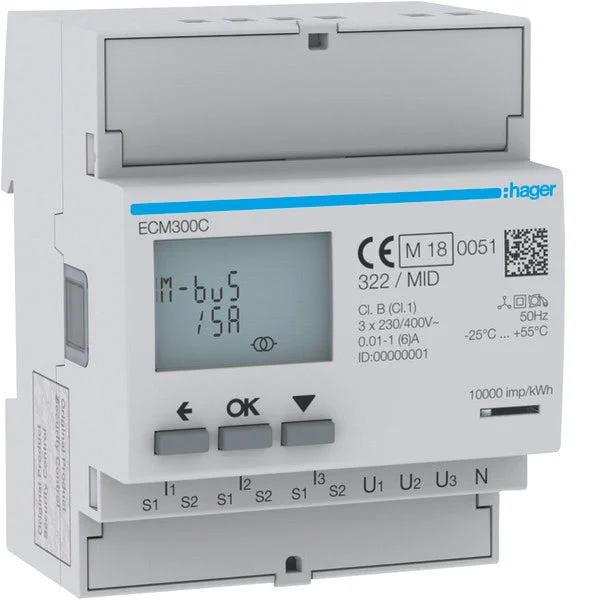

Hager Electricity Meter – ECM300C

Hager electricity meter, (HxWxD) 90x72x60mm, pole type quad conductor, meter type electronic, indication type digital, measurement value transducer implementation, rated voltage (Un) L-L 160 – 480V, rated voltage (Un) N-L 92 – 276V, rated current (In) 5A, max current (Imax) 6A, frequency 45 – 65Hz.

Specifications

Type of meter : Electronic
Nominal current (In) (A) : 5
Max. current (Imax) (A) : 6
Nominal voltage (Un) N-L (V) : 92 V to 276 V
Nominal voltage (Un) L-L (V) : 160 V to 480 V
Frequency (Hz) : 45 Hz to 65 Hz
Accuracy class : B
Pole type : Four conductor
Model : Measurement transformer
Energy type : Effective power and blind power
Suitable for : Purchase/supply
Tariff type : Multi-tariff
Tariff control : Internal/external
Measurement type load profile : No
Escapement mechanism : Yes
Calibrated : Yes
Approval : Measuring Instruments Directive
Pulse output : Optic
Pulse type : S0
Type of indication : Digital
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Width (mm) : 72
Depth (mm) : 60
Height (mm) : 90
Type of interface : M-bus (wired)
EEC40 signature : No
With lock code : No
Number of positions total (counter) : 9
Degree of protection (IP) : IP20
