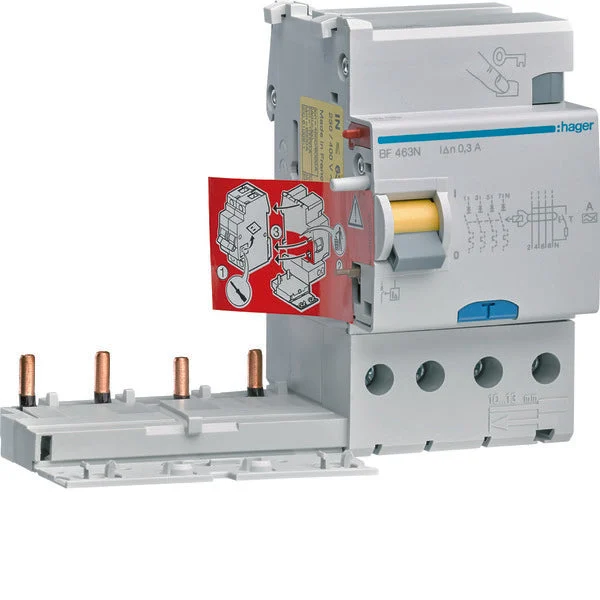

Hager BF For inst.circuit breaker <63A earth fault block, rated fault current 300mA, rated voltage 230 - 400V, type leakage current A, connectable conductor cross-section duck 1 - 25mm², connectable conductor cross-section lake 1 - 16mm², 4 poles, degree of protection (IP) IP20, frequency 50Hz, rated insulation voltage Ui 500V.
Specifications
Nominal voltage (V) : 230 V to 400 V
Nominal current (A) : 63
Rated fault current adjustable : No
Rated fault current (A) : 0.3 A to 0.3 A
Max. delay time (ms) : 0
Delay adjustable : No
Number of poles : 4
Leakage current type : A
Surge current capacity (kA) : 3
Frequency : 50 Hz
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
Anti-nuisance tripping version : No
With interlocking device : No
Degree of protection (IP) : IP20
Pollution degree : 2
Ambient temperature during operating (°C) : -5 °C to 40 °C
