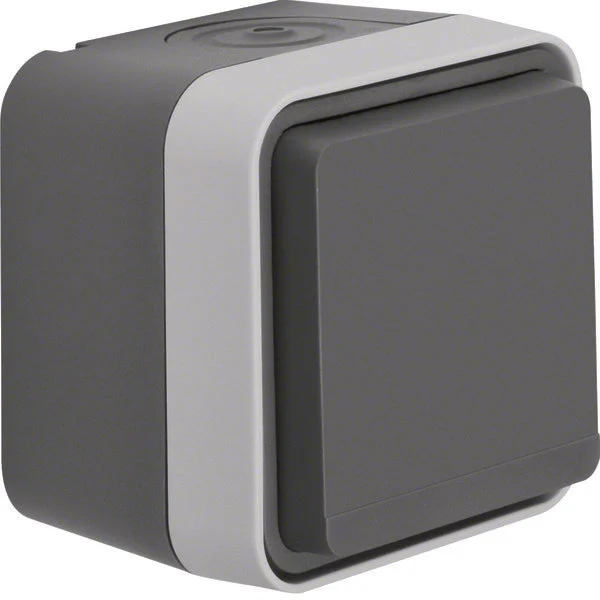

This socket outlet from the W.1 series by Hager Berker features grounding, increased touch protection (child protection) and a closing hinged cover that can be manually locked. The socket with complete housing has a cable entry for 2 conductors and a cable entry for conductors or conduit. With its IP55 rating, the socket protects against dust formation inside the housing and ensures perfect drainage of water jets from every angle.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Protective earth pin round : No
Number of active pins (round) : 2
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Type of USB power supply : Other
Number of units : 1
Number of modules (module system) : 1
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Screwed terminal
With hinged lid : Yes
With enhanced contact protection : No
Label space/information surface : No
Color : Grey
RAL-number (similar) : 7011
Metallic color : No
Transparent : No
Lockable : Yes
Eject-mechanism : No
Insulated mounting : Yes
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Other
Type of fastening : Mounting with screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : No
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 60 Hz
Rated fault current (mA) : 16
Suitable for degree of protection (IP) : IP55
Impact strength : IK07
Width of device (mm) : 76
Height of device (mm) : 76
Depth of device (mm) : 65
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 0
Compatible with Amazon Alexa : No
IFTTT support available : No
