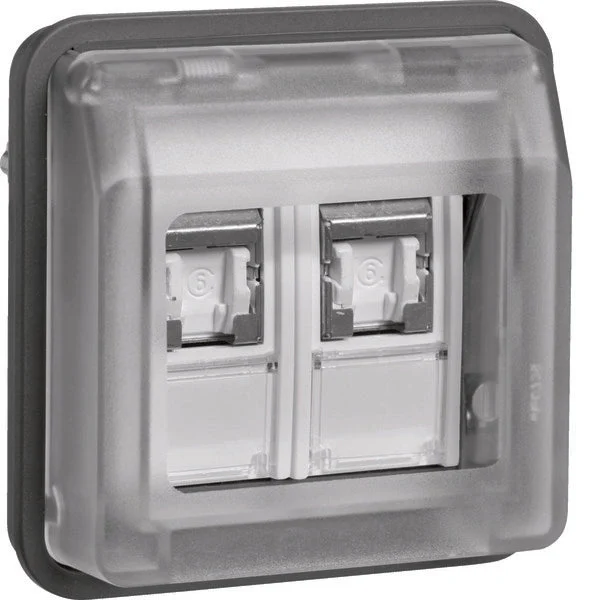

This data socket from the W.1 series by Hager Berker is suitable for Power over Ethernet (PoE). The data connection point upper part is equipped with a self-closing lid. It must be manually snapped shut to achieve a protection rating of IP55. With the IP55 rating, this W.1 data socket protects against dust formation in the housing and ensures perfect drainage of water jets from every angle. This Hager Berker W.1 data socket is only the top part and still needs to be combined with a separately available cover frame for flush mounting or surface mounting.
Specifications
Assembly arrangement : Basic element with full cover plate
Utilization : UAE/IAE (ISDN)
Support ring : No
With dust cover : Yes
With hinged lid : Yes
Outlet direction : Inclined
Imprintable label : Without indication field
With imprint : No
Mounting method : Surface mounted (plaster)
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
Color : Grey
RAL-number (similar) : 7011
Transparent : No
With buses/couplings : Yes
Suitable for number of connectors : 2
Shielded buses : Yes
Luster terminal : No
Width of device (mm) : 70.3
Height of device (mm) : 70.3
Depth of device (mm) : 50
