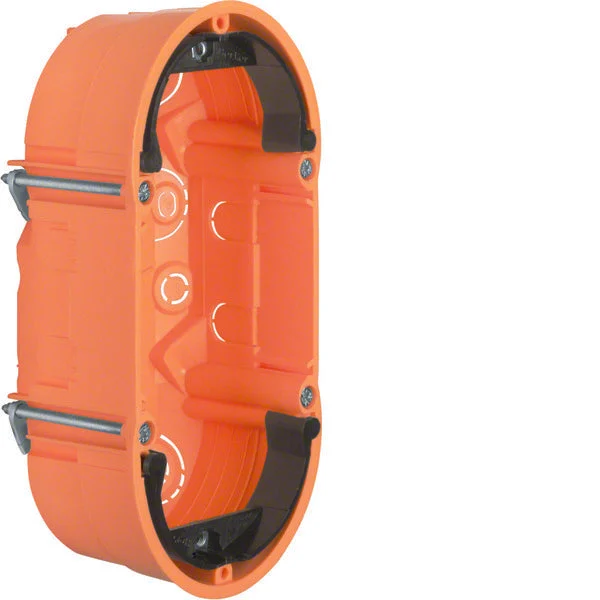

Hager Berker TS Wall Installation Box For Glass Cover Plates – 1824

The Hager Berker TS is a single, plastic wall or ceiling inlet box specifically designed for hollow walls. The box measures 140x68x47.5mm (lxbxd) and features an oval shape. It is meant for two inlet sockets and offers an internal depth of 40mm. The switchgear is designed for screw mounting while the housing penetration is through break-open points. It is suitable for a tube diameter of 25mm. Also, it is compatible with Berker TS glass cover plates for wall inlets.

Specifications

Mounting method : Hollow wall
Shape : Oval
Construction type : Device connection box (round/square)
Model : Single
Provided with revolving ring : No
Connectable : No
Equipped with : None
Length (mm) : 140
Width (mm) : 68
Depth (mm) : 47.5 mm to 47.5 mm
Internal depth (mm) : 40
For number of electric fittings : 2
Mounting switching equipment : Screwing
With screws : No
Housing feed-through by break-out opening : Yes
Housing feed-through by seal membrane : No
Housing feed-through by nozzle : No
Housing feed-through by step membrane : No
For tube diameter : 25 mm
Suitable for cable diameter (mm) : 12 mm to 12 mm
Pipe locking : No
Pipe locking optional : No
Inlet from the rear : No
Number of included spouts : 0
Material : Plastic
Halogen free : No
Surface protection : Untreated
Color : Orange
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : 1
Cover model : None
Transparent cover : No
Sealable : No
Circuit integrity : None
With screening : No
Air tight : No
Max. conductor cross section (mm²) : 2.5
Number of poles of the clamp : 0
Clamp position fixed : No
Luminaire hook mounting : No
Nozzle : Other
With nail lugs : No
Special application : None
