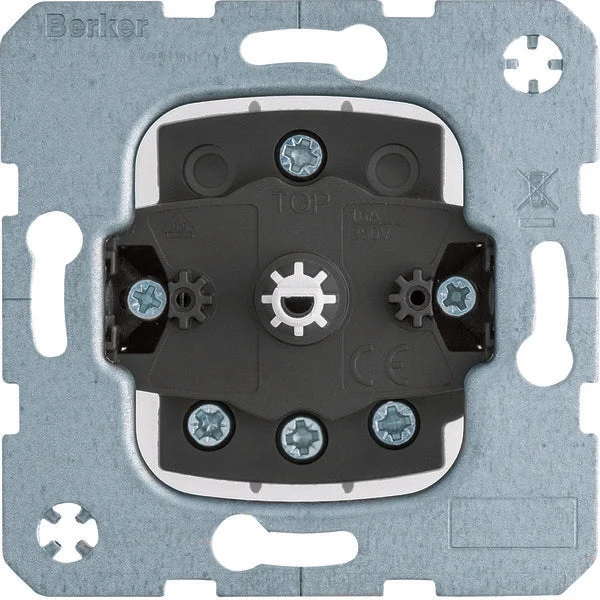

Hager Berker Three-Position Switch – 386103

This three-position switch from Hager Berker is suitable for controlling motors, such as for air conditioning and fans. In addition, the three-position switch has the following modes: 0-1-2-3. With screw terminals.

Specifications

Assembly arrangement : Basic element
Method of operation : Turn button
Wiring system : Circuit 0 – 1 – 2 – 3
Mounting method : Flush mounted (plaster)
Material : Other
Material quality : Other
Halogen free : Yes
Surface protection : Other
Surface finishing : Not applicable
RAL-number (similar) : 7035
Transparent : No
Suitable for degree of protection (IP) : IP20
Rated current (A) : 10
Nominal voltage (V) : 250
Type of fastening : Mounting with claw
Min. depth of built-in installation box (mm) : 35
