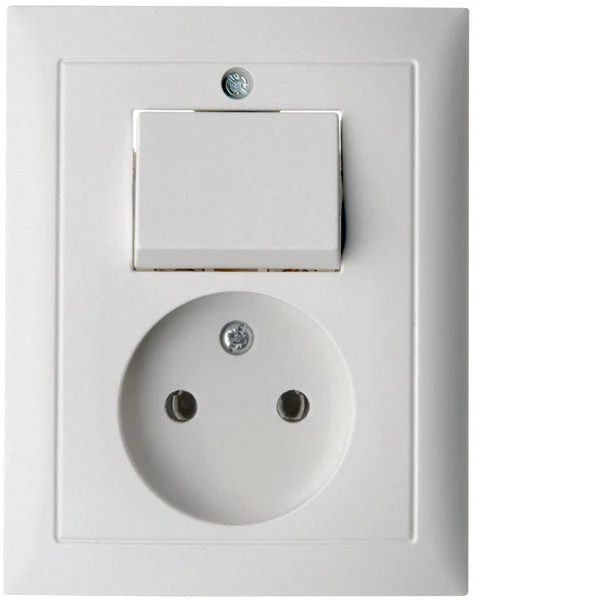

This is a Hager Berker S.1/B.3/B.7 combination switch/socket outlet, made of durable duroplast plastic in white. Designed for flush mounting, the socket outlet does not come with an earthing contact, but it features a changeover switch option. The switch operates via a rocker/push button mechanism. It is not halogen-free and has a protection degree of IP20. It features 2 active round contacts. This item is part of the S.1, polar series.
Every Hager Berker switchgear series has been designed with utmost care and attention to design and functionality. With the modular system of Hager Berker, you can assemble the product of your choice precisely. From a wide range of design switchgear with high-quality functionality, you choose the correct switchgear for your application. Hager Berker offers three series which you can combine to your heart’s content: S.1, B.3, and B.7. Berker S.1 is characterized by its distinctively curved frame and unique, timeless shape. In addition, B.3 has a unique design with a high-quality aluminum frame and B.7 consists of robust cover frames made of high-quality, special materials. Hager offers different mechanisms that can be applied in the cover frames of the S and B series, namely the products called S/B. As a result, the Hager Berker S/B switchgear range is versatile, and there is a matching cover for every function.
Specifications
Type of switch : Two-way switch
Type of socket outlet : Without protective contact
Number of socket outlets : 1
Method of operation : Rocker/button
Mounting direction : Vertical
Type of fastening : Mounting with screw
With lighting : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9010
Transparent : No
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 250
Nominal current socket outlet (A) : 16
Rated current (A) : 10
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Number of active pins (round) : 2
Number of active pins (flat) : 0
Min. depth of built-in installation box (mm) : 40
Width of device (mm) : 80.5
Height of device (mm) : 101.5
Depth of device (mm) : 39
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
