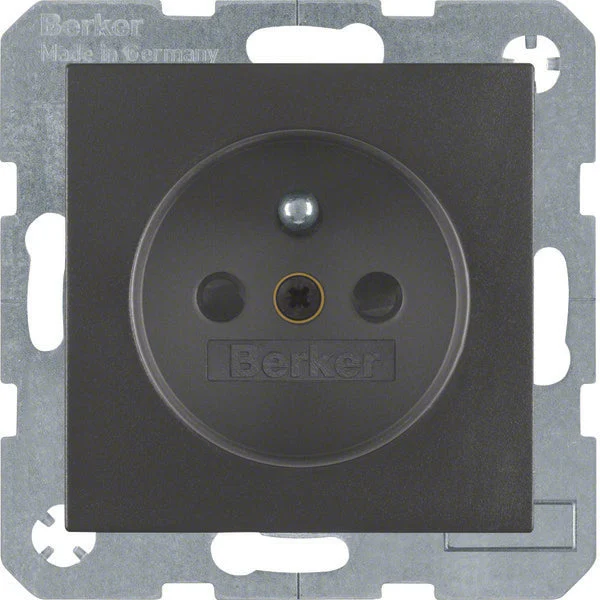

Hager Berker S.1/B.3/B.7 Wall Outlet (WCD Switchgear) (European Socket) – 6765761606

Hager Berker S/B wall socket 6765761606. Every Hager Berker switchgear series is designed with maximum care and attention to design and functionality. With the modular system from Hager Berker, you can precisely put together the product of your choice. From a wide range of designer switchgear with high-quality functionality, choose the right switchgear for your application. Hager Berker offers three series that you can combine to your heart’s content: S.1, B.3 en B.7. Berker S.1 is characterized by its characteristic arched frame and unmistakable, timeless form.

Specifications

Model : Earthing pin
Protective contact : Yes
Protective earth pin round : Yes
Number of active pins (round) : 2
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Type of USB power supply : Other
Number of units : 1
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Screwed terminal
With hinged lid : No
With enhanced contact protection : Yes
Label space/information surface : No
Color : Anthracite
RAL-number (similar) : 7021
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : Yes
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : No
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 60 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK05
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 41.6
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
