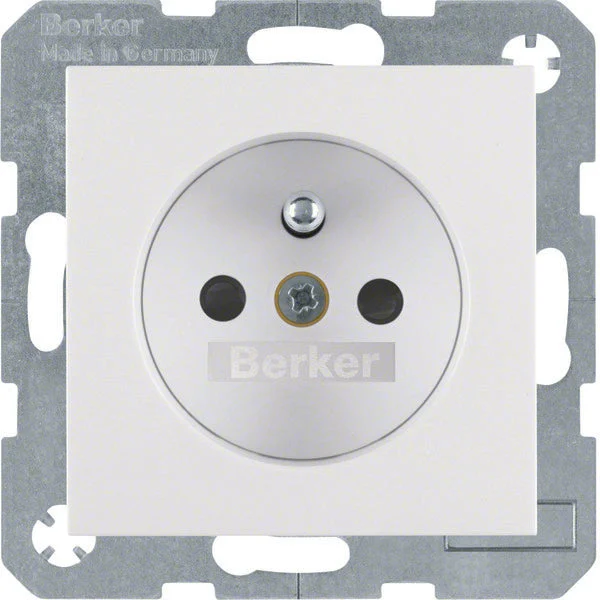

This S/B socket outlet from Hager Berker features pin ground (suitable for Belgium) and increased touch protection (child protection). Mounting with spread clamps, connection with screw lift clamps. The socket should be finished with a suitable cover frame. Furthermore, the Hager Berker S/B socket is made of thermoplastic and finished in a matte alpin white color.
Specifications
Model : Earthing pin
Protective contact : Yes
Protective earth pin round : Yes
Number of active pins (round) : 2
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Type of USB power supply : Other
Number of units : 1
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Screwed terminal
With hinged lid : No
With enhanced contact protection : Yes
Label space/information surface : No
Color : White
RAL-number (similar) : 9010
Metallic color : No
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : Yes
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : No
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 60 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK05
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 41.6
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 31
Compatible with Amazon Alexa : No
IFTTT support available : No
