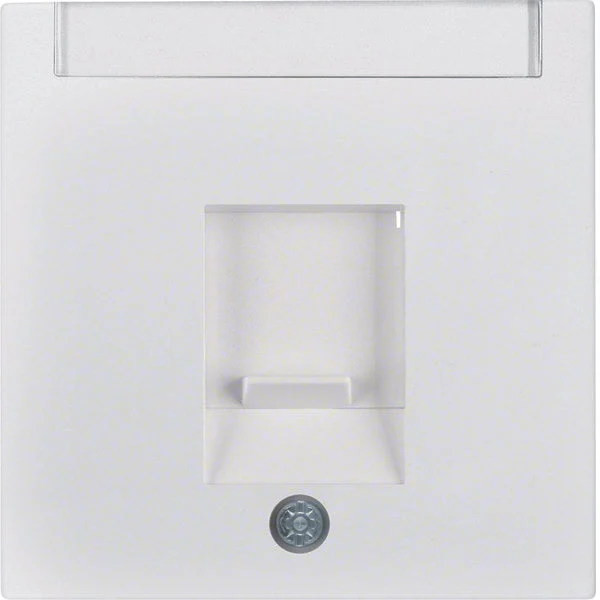

Hager Berker S.1/B.3/B.7 Inserts Switchgear – 11708989

This central plate RJ45 from Hager Berker for modular jacks features 1 dust slide and a text field. Suitable for screw mounting.

Specifications

Assembly arrangement : Central cover plate
Utilization : Modular Jack
Support ring : No
With dust cover : Yes
With hinged lid : No
Outlet direction : Straight
Imprintable label : With indication plate
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9010
Transparent : No
Type of fastening : Mounting with screw
Number of modules (module system) : 1
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP20
Impact strength : IK02
Width of device (mm) : 55
Height of device (mm) : 55
Depth of device (mm) : 9
Min. depth of built-in installation box (mm) : 0
