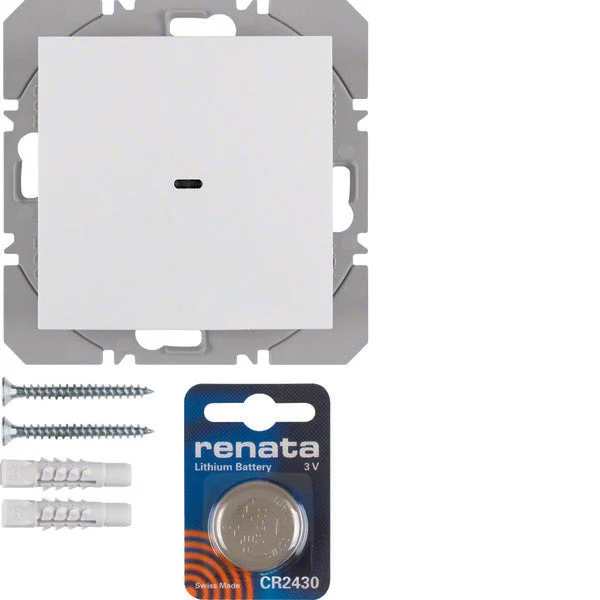

This S/B wireless wall transmitter from Hager Berker is a KNX-RF 1-gang flat wall transmitter. The quicklink functions of the wireless wall transmitter are switching, dimming, blinds, 2 scenes, time switching, impulse switch make contact, memory. Additional ETS functions: +6 scenes, on/off mode, impulse switch, state indication, dimming value. Also, the flat panel module has a reset function (to factory settings). The control surfaces are configurable as single-plane or dual-plane controls per channel. In addition, the transmitter displays transmitter and battery status through a red/green/orange LED.
Specifications
Bus system KNX : No
Bus system KNX radio : Yes
Bus system radio frequent : No
Bus system LON : No
Other bus systems : None
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
With bus connection : Yes
Model : Wall-mounted transmitter complete
Number of channels : 2
Material : Plastic
Material quality : Thermoplastic
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9010
Transparent : No
