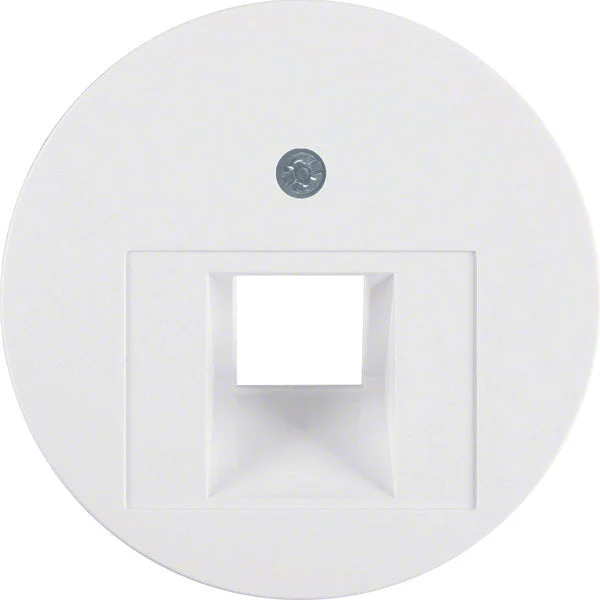

Hager Berker R central plate IAE/UAE 14072089. Every Hager Berker switchgear series is designed with maximum care and attention to design and functionality. With the modular system from Hager Berker, you can precisely put together the product of your choice. From a wide range of designer switchgear with high-quality functionality, choose the right switchgear for your application. The Hager Berker series R.1, R.3 and R.8 can be combined as desired. With these switch series, Hager Berker carries the great tradition of round switches into the future.
Specifications
Assembly arrangement : Central cover plate
Utilization : UAE/IAE (ISDN)
Support ring : No
With dust cover : No
With hinged lid : No
Outlet direction : Inclined
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9010
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP20
Impact strength : IK05
Width of device (mm) : 58.1
Height of device (mm) : 58.1
Depth of device (mm) : 14
Min. depth of built-in installation box (mm) : 0
