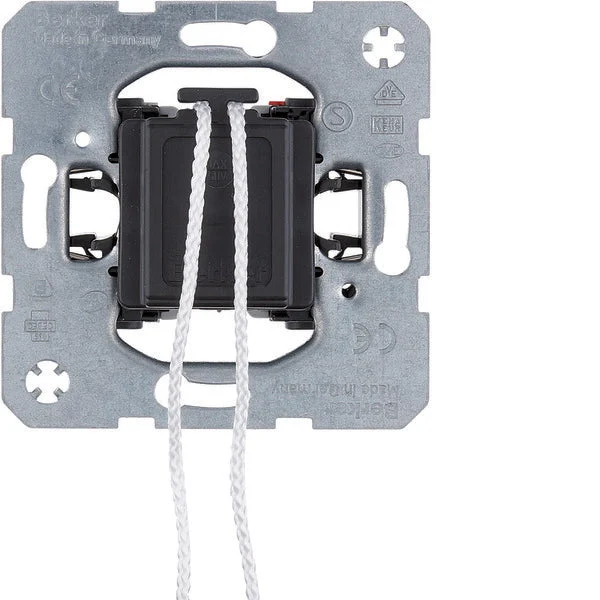

This pull switch from Hager Berker is suitable for turning a lamp on and off by pulling. In addition, the pull switch is suitable for wall and ceiling mounting. With plug-in clamps. Optional illumination with glowlamp element with N-clamp. This Hager Berker basic element can be combined with a central plate pull switch from the S.1, B.3, B.7, Q.1, Q.3, K.1, K.5, R.1, R.3 and Arsys series.This basic element can be combined with a central plate pull switch from the S.1, B.3, B.7, Q.1, Q.3, K.1, K.5, R.1, R.3 and Arsys series.
Specifications
Wiring system : Two-way switch
Method of operation : Pull cord
Assembly arrangement : Basic element
Push button switch : No
Mounting method : Flush mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material : Other
Material quality : Other
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Label space/information surface : No
Illumination : Yes
Type of lighting : Incandescent lamp
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 250
Rated current (A) : 10
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Heating switch : No
Width of device (mm) : 70.8
Height of device (mm) : 70.8
Depth of device (mm) : 41.6
Built-in depth (mm) : 31
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 35
Compatible with Amazon Alexa : No
IFTTT support available : No
