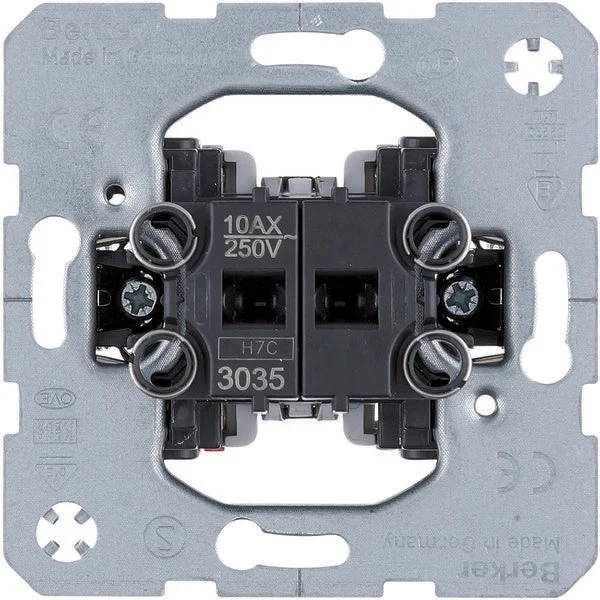

This switch from Hager Berker is suitable as a series switch. A series switch has two rockers, allowing you to control two separate light points in one place. Connection with plug-in terminals, mounting with spreader terminals. Optional illumination with glowlamp element with N-clamp. This Hager Berker basic element can be combined with a control rocker from the S.1, B.3, B.7, Q.1, Q.3, K.1, K.5, R.1, R.3 and Arsys series.
Specifications
Wiring system : Series switch
Method of operation : Rocker/button
Assembly arrangement : Basic element
Push button switch : No
Number of rockers : 2
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw
With mounting plate : No
Material : Other
Material quality : Other
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Surface finishing : Matt
Label space/information surface : No
Illumination : Optional
Function lighting : Control and orientation
Type of lighting : Glow lamp
Suitable for degree of protection (IP) : IP20
Impact strength : IK07
Nominal voltage (V) : 250
Rated current (A) : 10
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Heating switch : No
Washing machine switch : No
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 42
Built-in depth (mm) : 32
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 35
Compatible with Amazon Alexa : No
IFTTT support available : No
