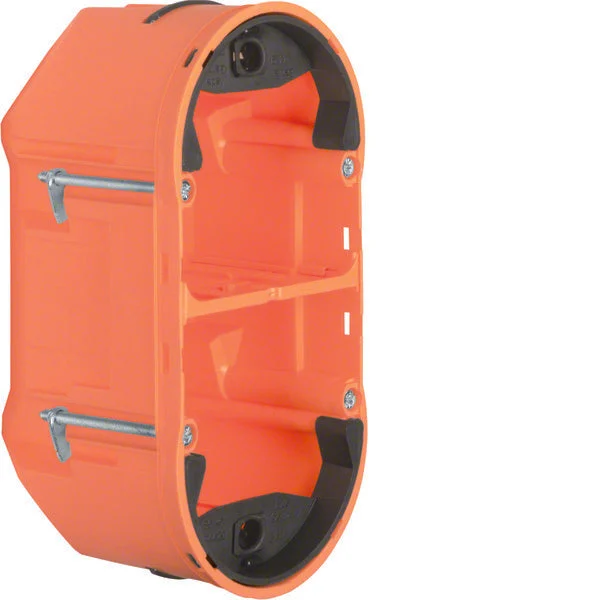

The Hager Berker TS is a single inset box for wall or ceiling, made of plastic with a diameter of 68mm and dimensions of 139x68x75mm (length x breadth x depth). Designed for hollow, oval walls, this inset box or junction box model has an internal depth of 73mm and can accommodate 2 inset sockets. The switchgear is secured by screws, included with the product, and housing reinforcement is done through removable access points. It is suitable for Berker TS Crystal Ball and Berker TS sensor.
Specifications
Mounting method : Hollow wall
Shape : Oval
Construction type : Device connection box (round/square)
Model : Single
Provided with revolving ring : No
Connectable : No
Equipped with : None
Diameter size (mm) : 68
Length (mm) : 139
Width (mm) : 68
Depth (mm) : 75 mm to 75 mm
Internal depth (mm) : 73
For number of electric fittings : 2
Mounting switching equipment : Screwing
With screws : Yes
Housing feed-through by break-out opening : Yes
Housing feed-through by seal membrane : No
Housing feed-through by nozzle : No
Housing feed-through by step membrane : No
For tube diameter : 20 mm
Suitable for cable diameter (mm) : 11 mm to 11 mm
Pipe locking : No
Pipe locking optional : No
Inlet from the rear : No
Number of inlets : 12
Number of included spouts : 0
Material : Plastic
Halogen free : No
Surface protection : Untreated
Color : Orange
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : 1
Cover model : None
Transparent cover : No
Cover attachment : Other
Sealable : No
Circuit integrity : None
With screening : No
Air tight : No
Max. conductor cross section (mm²) : 2.5
Number of poles of the clamp : 0
Clamp position fixed : Yes
Luminaire hook mounting : No
Nozzle : Other
With nail lugs : No
Special application : None
