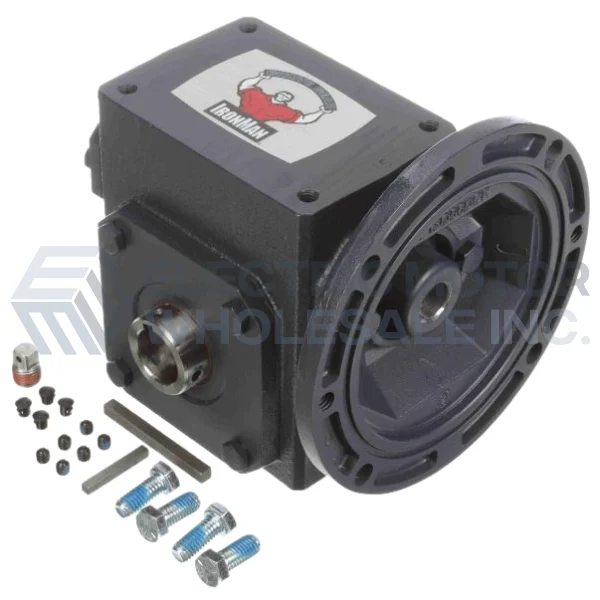

Grove Cast Iron Right Angle Worm Gear Reducer is designed for a wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housing
- Factory-filled premium Mobil Glygoyle 460 polyalkalene lubricant
- Precision machined mounting surfaces
- O-rings on input and output covers
- Viton double lip seals provide extended life
- NEMA C input flange, Push-off holes
- Bronze worm gear chill cast from high quality bronze
- Tapered roller bearings
- Premium Grade 5 assembly bolts throughout
- Mounting dimensions are interchangeable with most industry standard reducers
Specifications
|
Max Input HP @1750: |
3 |
|
Output RPM @1750: |
87 |
|
Reduction Ratio: |
20:1 |
|
Torque (lb-in)@1750rpm: |
2454 |
|
Overhung Load (lbs.): |
2170 |
|
Shaft Center Distance: |
3.0 |
|
Shaft Center Height: |
3.25 |
|
Mount Footprint: |
4.00” x 7.00” |
|
NEMA Input Mounting: |
56C |
|
Mount Style: |
HMQ |
