Gira System 55 Wall Socket Outlet (WCD Switchgear) – 041403

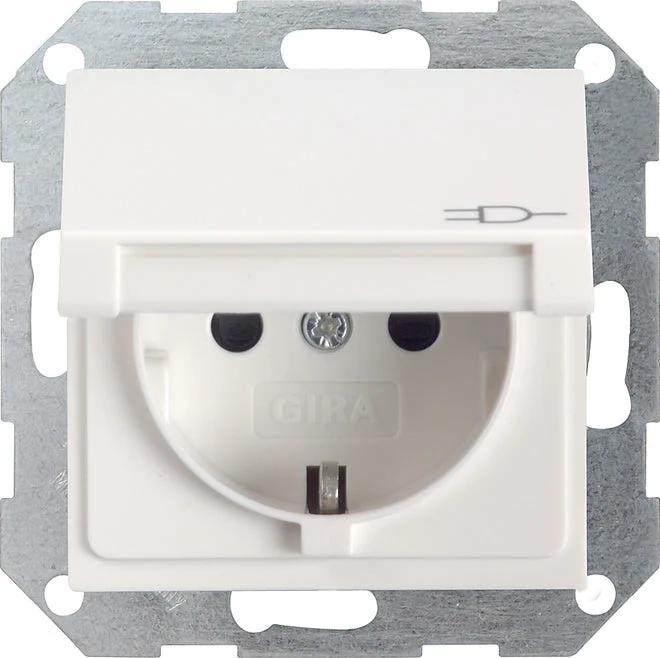

This single socket outlet from the System 55 series by Gira is equipped with hinged cover, protective earth and increased touch protection (child protection). In combination with the sealing set and a cover frame Standard 55 and E2, single- to five-gang, socket outlets with rim with hinged cover can be installed water-protected flush-mounted IP 44. Sealing set: 025227.

Specifications

Model : Protective contact (SCHUKO)
Protective contact : Yes
Number of units : 1
Number of modules (module system) : 1
Imprint/indication : Other
Connection type : Push-in clamp
With hinged lid : Yes
With enhanced contact protection : Yes
Color : White
RAL-number (similar) : 9010
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
