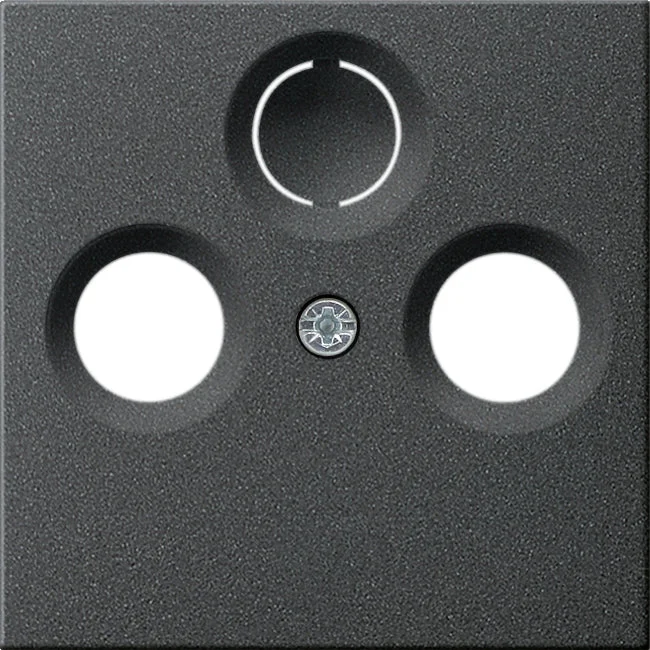

This central plate satellite from the System 55 series by Gira is suitable as a cover plate for a coaxial antenna socket. The third port is expandable. Antenna sockets: 004100, 004200, 004600, 093700.
Specifications
Assembly arrangement : Central cover plate
Utilization : Bore hole
Support ring : No
With dust cover : No
With hinged lid : No
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Color : Anthracite
RAL-number (similar) : 9005
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP20
Width of device (mm) : 55.46
Height of device (mm) : 55.49
Depth of device (mm) : 8.27
