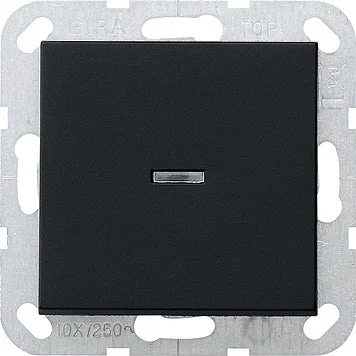

This pressure surface control switch from the System 55 series from Gira is suitable as a universal off-change switch. The switch always returns to its original position. This has the advantage that the switching position of the control dials are always the same. With glow lamp element 230 V~, 1.5 mA. Also connectable with illumination: Glim lamp elements 099500, 099600, 099700. LED illumination base element: 049707, 049708, 049710, 099200, 140500.
Specifications
Wiring system : Two-way switch
Method of operation : Rocker/button
Assembly arrangement : Basic element with central cover plate
Number of modules (module system) : 1
Push button switch : Yes
Number of rockers : 1
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
With mounting plate : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Lacquered
Surface finishing : Matt
Color : Black
Label space/information surface : No
Illumination : Yes
Function lighting : Illuminated (on)
Type of lighting : Glow lamp
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 250
Rated current (A) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Heating switch : No
Washing machine switch : No
Width of device (mm) : 71
Height of device (mm) : 71
Built-in depth (mm) : 31.43
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
