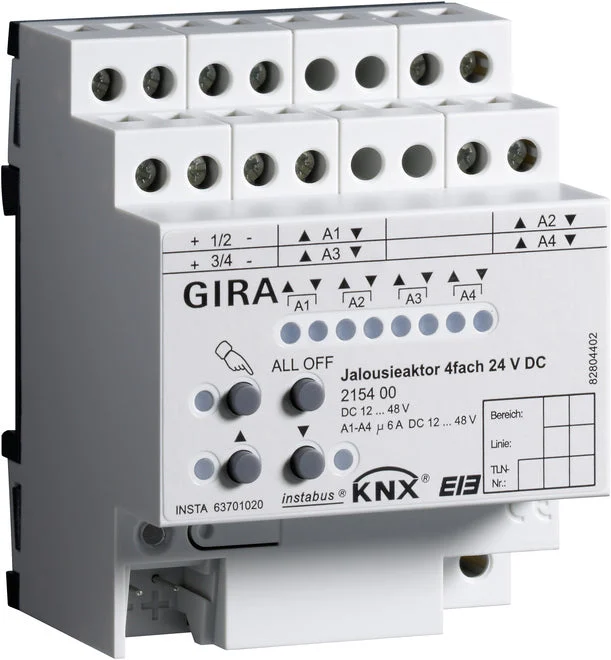

Gira KNX DIN-Rail Blind Actuator Bus System – 215400

Gira KNX DIN-rail blind actuator bus system, bus system KNX, DRA (DIN-rail adapter), 1 input, 4 outputs, operating voltage 24Vdc, protection rating (IP) IP20, width in module units 4, bus connection included, energy-saving, manual operation, max. Number of blind outputs 4.

Specifications

Bus system KNX : Yes
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Local operation/hand operation : Yes
With LED indication : No
Number of inputs : 1
Switching current (resistive) (A) : 6
Max. number of venetian-blind outputs : 4
Type of current : DC
Degree of protection (IP) : IP20
