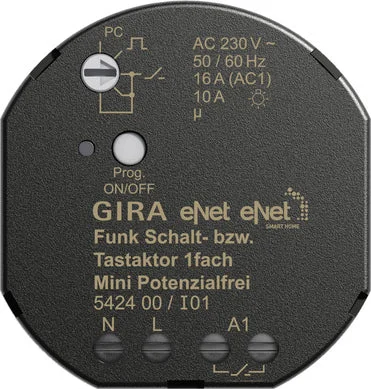

Gira ENet Switching Actuator Bus System – 542400

Gira ENet Mini switching actuator bus system, flush-mounted, max. Number of switching outputs 4, other bus systems eNet, dimensions 53x28mm, operating voltage (measurement voltage) 230V, protection category (IP) IP20, width in module units 1, bus system radio frequency, max. Switching current 16A, max. Switching capacity 2300W.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : eNet
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 1
Local operation/hand operation : No
With LED indication : No
Number of digital inputs : 0
Max. switching power (W) : 2300
Max. switching power LED (W) : 500
Suitable for C-load : No
Max. number of switching contacts : 4
Max. switching current (A) : 16
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : No
With bus connection : No
Modular expandability : No
Degree of protection (IP) : IP20
