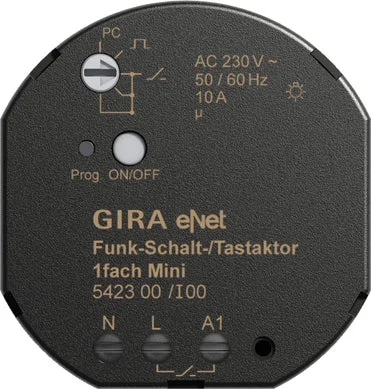

Gira ENet Switching Actuator Bus System – 542300

Gira ENet Mini switching actuator bus system, flush-mounted, max. Number of switching outputs 4, bus systems eNet, 1 digital inputs, dimensions 53x28mm, operating voltage (measuring voltage) 230V, degree of protection (IP) IP20, width in module units 1, bus system radiofrequency, max. Switching current 16A.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : eNet
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 1
Local operation/hand operation : No
With LED indication : No
Number of digital inputs : 1
Max. switching power (W) : 2300
Max. switching power LED (W) : 500
Suitable for C-load : No
Max. number of switching contacts : 4
Max. switching current (A) : 16
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : No
With bus connection : No
Modular expandability : No
Degree of protection (IP) : IP20
