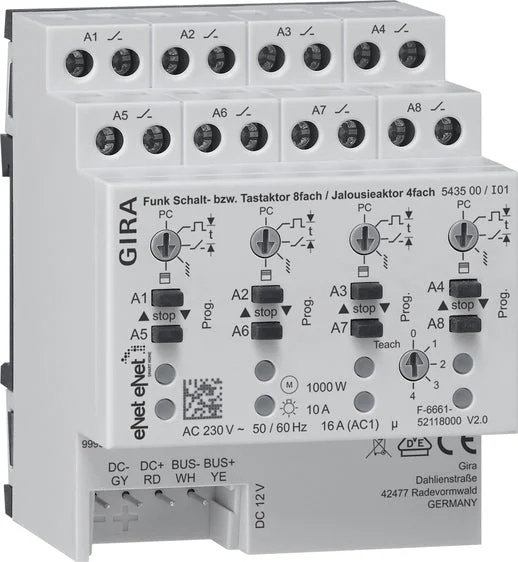

Gira ENet Blind Actuator Bus System – 543500

This eNet blind actuator from Gira is suitable for switching lights and single-phase fan motors and operating electrically controlled sunshades such as blinds, shutters and awnings. The 4-fold blind actuator is operated with suitable wireless eNet transmitters. In addition, this blind actuator, respectively push-button actuator and switching actuator, must be combined with the eNet mains voltage and eNet server. The louver actuator is suitable for mounting on a DIN rail in a sub-divider in accordance with EN 60715.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : eNet
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : No
Local operation/hand operation : No
With LED indication : No
Number of inputs : 3
Switching current (resistive) (A) : 16
Max. switching power (W) : 2300
Max. number of venetian-blind outputs : 4
With switch function : Yes
Type of current : AC
Degree of protection (IP) : IP20
