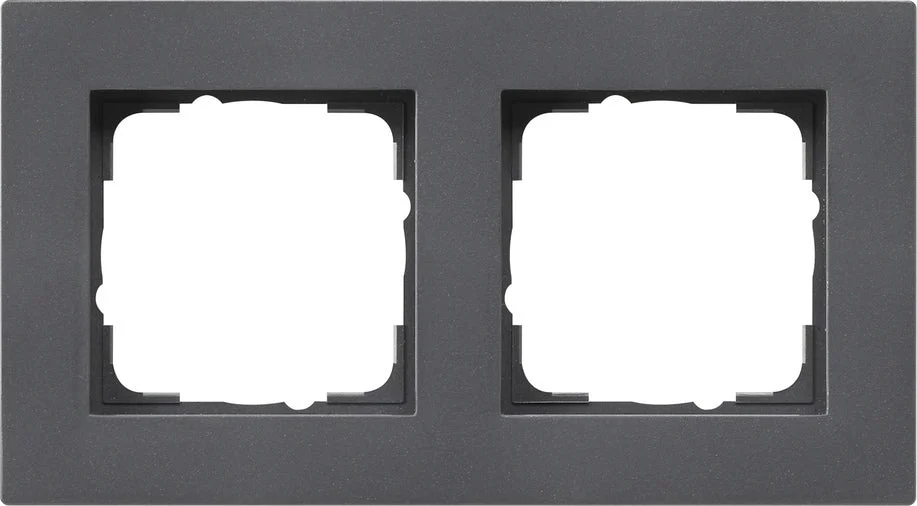

Gira E2 Cover Frame Switchgear – 0212235

This 2-gang cover frame from Gira’s E2 series has an anthracite color. Note: To create a flush-mounted installation, the cover frame should be combined with the Gira device box (anan number 289700). This device box is suitable for installation in hollow walls, for example in a flexible wall system, the device box can be recessed directly into the wall. If you want to create a flush installation in masonry, you should combine the cover frame with an appliance box and recessed box (anan number 289200), which is recessed into the wall.

Specifications

Number of units : 2
Mounting direction : Horizontal and vertical
Number of units horizontal : 2
Number of units vertical : 2
With mounting grid : No
Flush-mounted installation : Yes
Suitable for floor box : No
Suitable for wall duct : Yes
Suitable for built-in installation : No
Label space/information surface : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Color : Anthracite
Transparent : No
With hinged lid : No
Degree of protection (IP) : IP20
Type of fastening : Clamp mounting
Width (mm) : 158
Height (mm) : 87.64
Depth (mm) : 3.5
Built-in width (mm) : 56.01
Built-in height (mm) : 56.33
