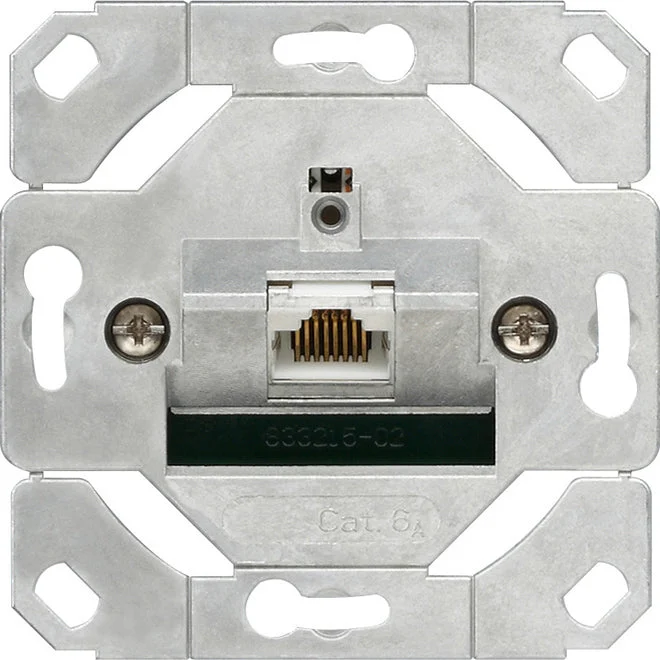

This data socket from Gira is a shielded network connection box with one RJ45 socket (8) for data transfer rates up to 10 Gigabit-Ethernet in accordance with IEEE 802.3an. The RJ45 connectors are suitable for networks according to cat. 6A. In addition, the data outlet has a 45° angled cable outlet for wall channel, floor well and recessed mounting. Cable entry possible from all directions in 8 x 45° increments.
Specifications
Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Assembly arrangement : Basic element
Type of connector : RJ45 8(4)
With buses/couplings : No
Suitable for number of connectors : 1
Color : Other
Shielded buses : Yes
Shielded housing : Yes
Separate earthing connection : No
With label space : No
Design suitable : Yes
Separate strain relief : No
Mounting method shielding connection : None
Outlet direction : Below
With dust cover : No
With terminal resistor : No
Mechanical coding : No
