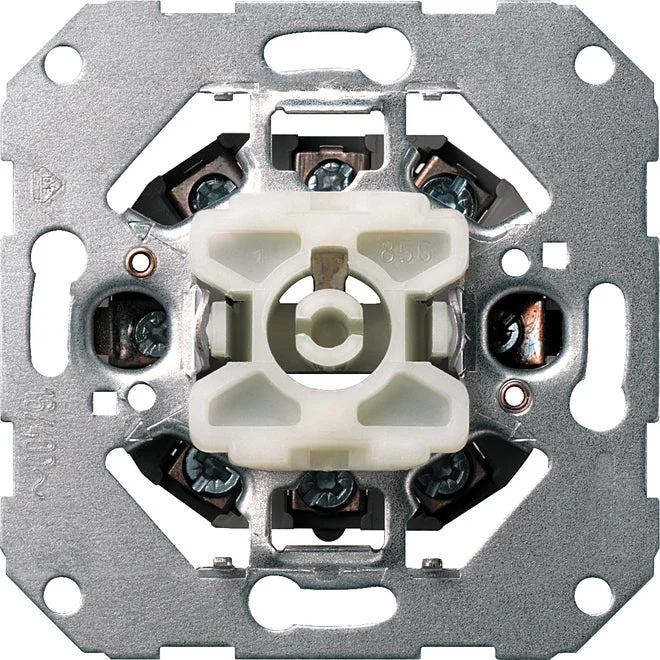

Gira Basic Unit Installation Switch – 010300

Gira Basisunit installation switch, other, flush-mounted, switching type 3-pole, operating mode rocker/pusher, composition basic element, protection category (IP) IP20, 3 poles, connection mode screw terminal, 1 rockers, nom. (measuring) current 16A, 1 modules (with modular sys, quality class other .

Specifications

Wiring system : 3-pole switch
Method of operation : Rocker/button
Assembly arrangement : Basic element
Number of modules (module system) : 1
Number of rockers : 1
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Other
Material quality : Other
Surface protection : Other
Color : Other
Label space/information surface : No
Illumination : No
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 400
Rated current (A) : 16
Connection type : Screwed terminal
Width of device (mm) : 70.67
Height of device (mm) : 70.75
Built-in depth (mm) : 34.4
