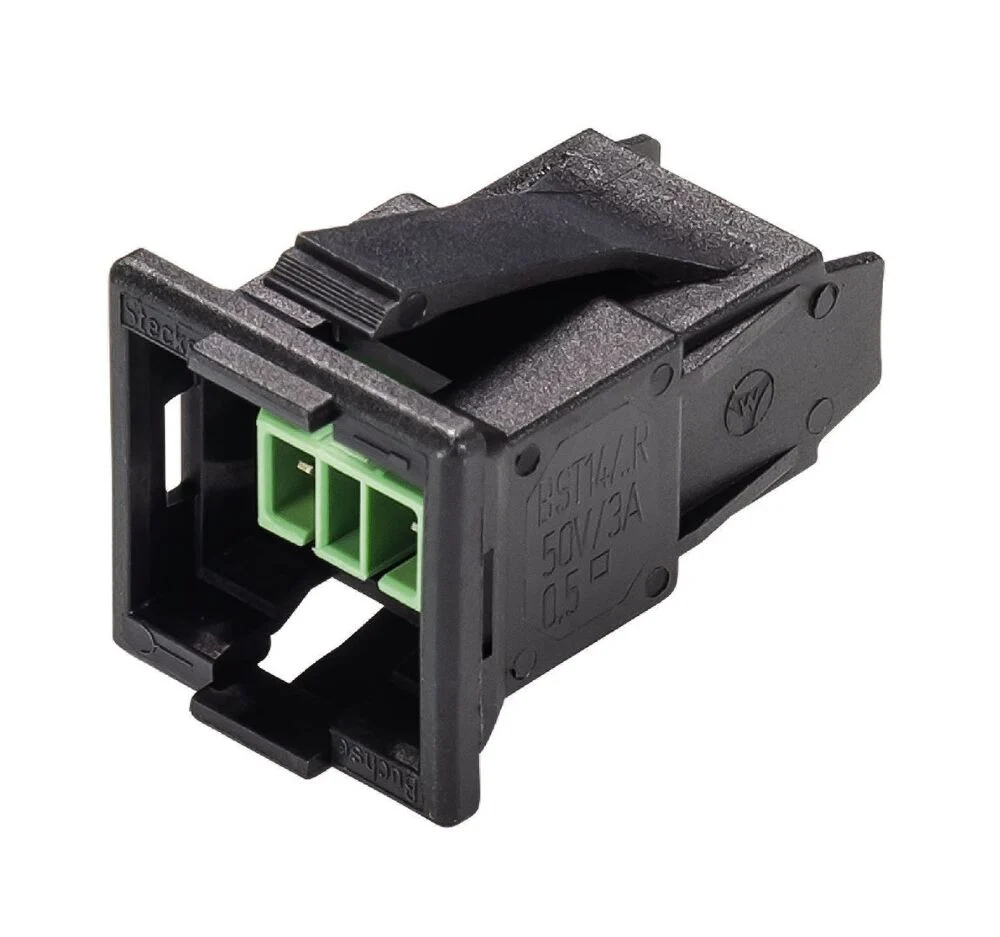

The Wieland BST 14 is a device connector for installation with building installations. It comes in a size of 19.6mm x 19.6mm x 29.9mm and is designed with a female contrast plug. The installation variant is a snap-in/screw part and does not require any screw thread for connection. The method of connection is spring clamp connection with one connection per pole, making it a two-pole device. It comes with a degree of protection (IP), rated IP20. The BST14I2 model comes in green color and has a female chassis.
Specifications
Rated voltage (V) : 50
Rated current (A) : 3
Number of poles : 2
Degree of protection (IP) : IP20
Connection type : Spring clamp connection
Model : Bus
Built-in version : Snap-in/screw-in device
Angle of plug : Straight
Number of connections per pole : 1
Pole codification : 1+, 2-
Mechanical coding : Yes
Color coding/contact insert : Green
Color of the separate adapter piece : Black
Color housing : Black
Locking mechanism : Integrated in plug-in connector
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.027
Contact material : Other
Surface treatment contacts : Gilt
Pollution degree : 2
Rated surge voltage (kV) : 0.8
Length (mm) : 29.9
Height (mm) : 19.6
Width (mm) : 19.6
Wall thickness housing (mm) : 1.5
