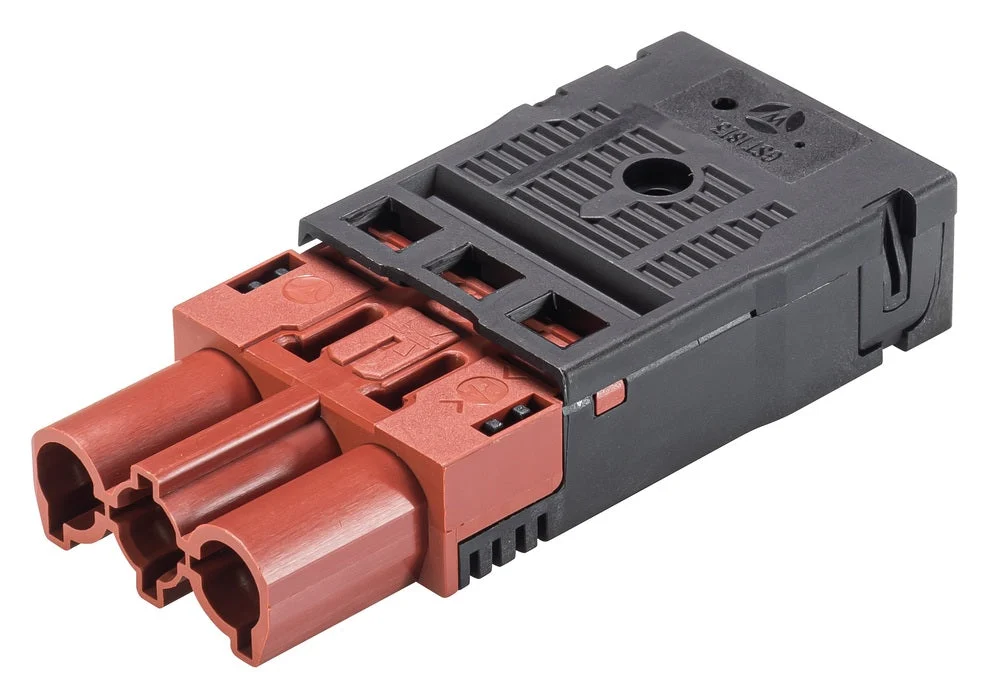

The Wieland GST18i3 is a plug-in connector used for building installations, having dimensions of 32.5mm (width) by 15.5mm (height) by 75mm (length). It is a male plug variety, with a brown coding/contact insert, and pole markings 1, 2, 3. It utilizes a spring clamp connection method. The connector allows a connection cross-section for solid conductors from 0.5 to 2.5mm² and a connection cross-section for flexible conductors from 0.5 to 1.5mm². It features three poles.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP40
Connection type : Spring clamp connection
Model : Plug
Cable diameter (mm) : 7.8 mm to 10.3 mm
Connection cross section (fine-strand) (mm²) : 0.5 mm² to 1.5 mm²
Connection cross section (solid-core) (mm²) : 0.5 mm² to 2.5 mm²
Number of connections per pole : 2
Pole codification : 1, 2, 3
Mechanical coding : Yes
Color coding/contact insert : Brown
Locking mechanism : Integrated in plug-in connector
With strain relief : Yes
Max. continuous temperature resistance contact part (°C) : 100
Max. continuous temperature resistance strain relief (°C) : 100
Material : Polyamide (PA)
Halogen free : Yes
Fire load (kWh) : 0.117
Contact material : CuZn
Surface treatment contacts : Tinned
Pollution degree : 2
Rated surge voltage (kV) : 4
Length (mm) : 75
Height (mm) : 15.5
Width (mm) : 32.5
