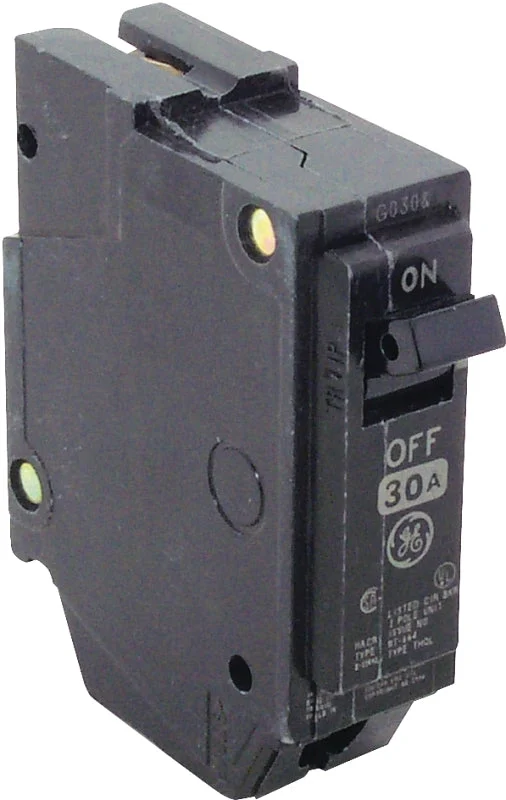

GE THQL1130 Feeder Circuit Breaker, Type THQL, 30 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A. 14 to 8 Cu or 12 to 8 Al AWG wire. 35 to 60 A. 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V.

Features

• Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
• Calibration screw is cemented to prevent shifting
• Breaker case is made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position

Additional Information

• Actuator Type: Quick-Make Quick-Break
• Current Rating: 30 A
• Dimensions: 3.28 in L x 1 in W x 2.38 in H
• Frame Type: Q-Line
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 1
• Operating Frequency: 50/60 Hz
• Operating Temperature: 60 to 75 deg C
• Suitable for: Reverse Feed
• Terminal Type: Screw Clamp
• Trip Type: Non-Interchangeable
• Type: Type THQL
• Voltage Rating: 120/240 V
• Wire Size: 14 to 8 12 to 8 AWG
