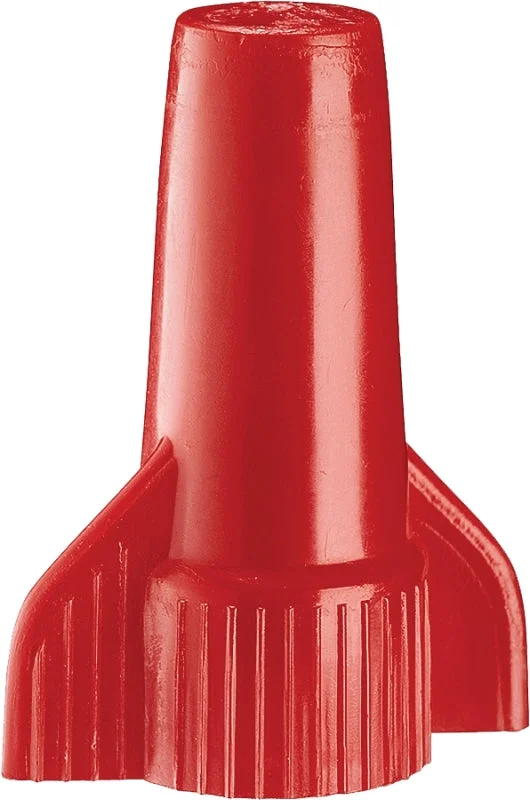

GB’s exclusive WingGard line of wire connectors leads the industry in quality and durability. The WingGard features a high-leverage, easy-on wing-type design. The wings are knurled for a sure-grip and offset for greater twisting leverage. The square wire plated spring instantly adjusts to the shape and size of the splice. The entire line of WingGard is colored for easy identification.
Unit: BX100
UPC: 032076100865
Model Number: 10-086
Features
- Wings are knurled for a sure grip and Offset from centerline for greater twisting leverage
- Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
Additional Information
- Color: Red
- Contact Coating: Zinc
- Contact Material: Steel
- Housing Material: Polypropylene
- Length: 1-1/4
- Mounting Type: Screw
- Voltage Rating: 300/600 V
- Width: 29/32
- Wire Size: 22 to 6 AWG
