About this item
- Stable, high temperature, low water pressure start.
- Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
- The water flow sensor is applied for water heater, and can be used as flow switch.
- All materials are in line with SGS testing standards.
- Flow Range: 2.5-30L/mi; Maximum Water Pressure: 1.75 Mpa
1. Water Flow Switch adopts a Magnetic Reed Switch, G3/4 male threaded ports each end. Equipped with filter water entry.
2. Mainly used for water heater, boiler, coffee machines, hot card machines, steam equipment, water system, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.
Specifications:

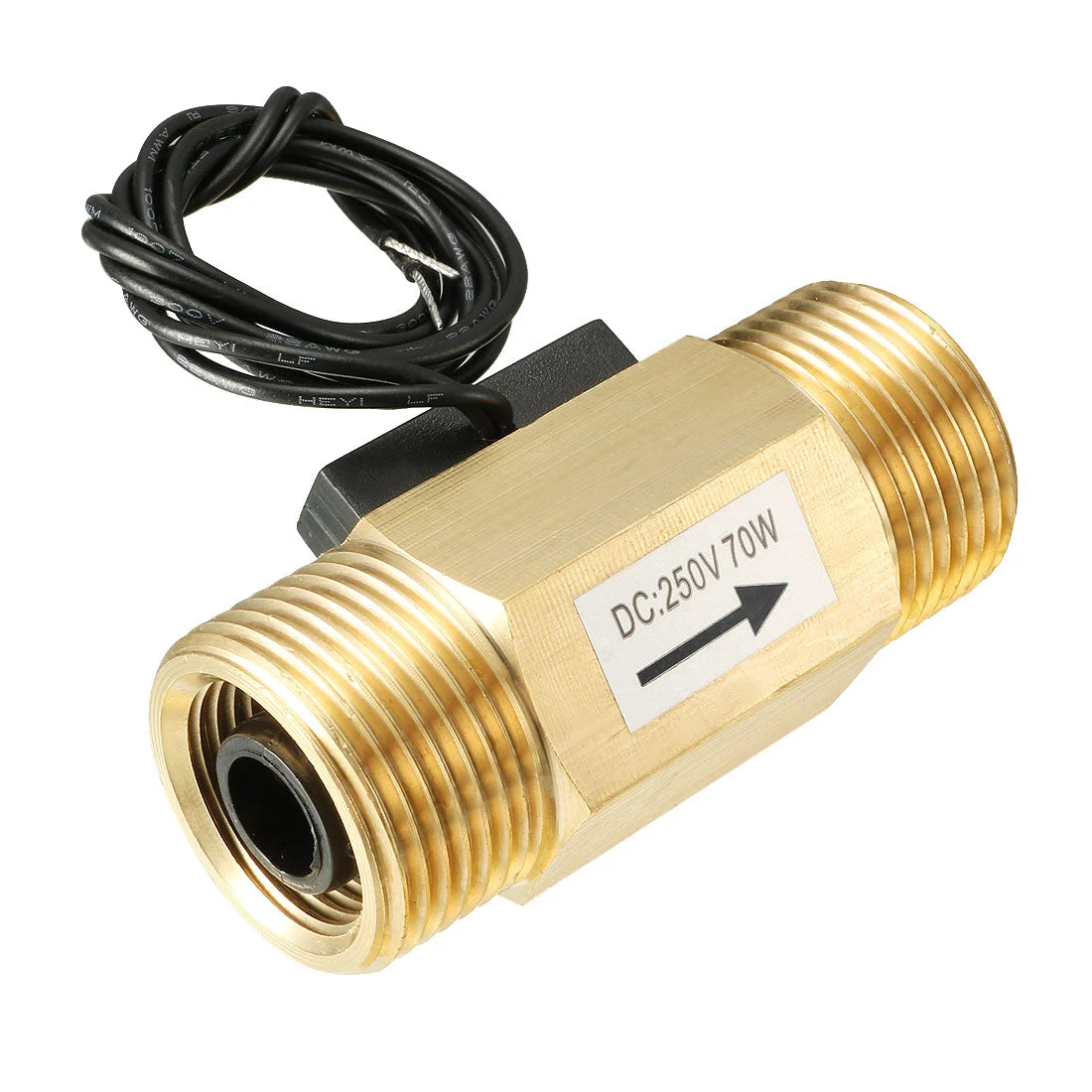

Product Name: Water Flow Sensor
Material: Brass(Shell)
Liquid Temperature: Not More Than 60C
External Thread Diameter: G3/4
Flow Range: 2.5-30L/min
Max Switch Voltage: DC250V
Max Contact Rating: 70W
Max Current: 0.3A
Maximum Water Pressure: 1.75MPa
Cable Length: 33cm
Size: 62mm x 31mm x 31mm(L*W*H)
Ingress Protection Rating: IP65
Color: Brass Tone
Net Weight: 157g
Package Included:
1 x Water Flow Sensor
Note:
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
