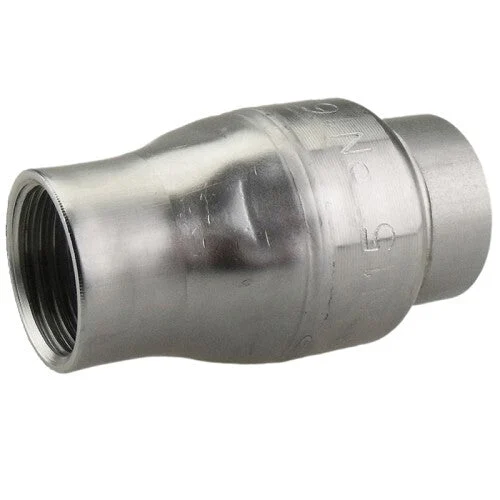

G3/4” check valve – stainless steel – FKM

G3/4″ Stainless steel check valve with parallel threads and FKM sealing. The differential pressure across the non-return valve must be higher than 0.03 bar. The valve has a light spring to close the valve. The maximum operating pressure is 16 bar and the valve is suitable for temperatures ranging from -25 up to 90°C.

Specifications

Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Recommended for : Water,Sea water,Combustible gases,Lubricant,Fuel,Oil,Strong acids and bases,Dilute acids and bases,Carbon dioxide,Air
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -25
Max temperature (°C) : 90
Min opening pressure (bar) : 0.03
Valve bore (mm) : 16
Model : Straight
Surface protection : Untreated
Article compression class : PN 16
