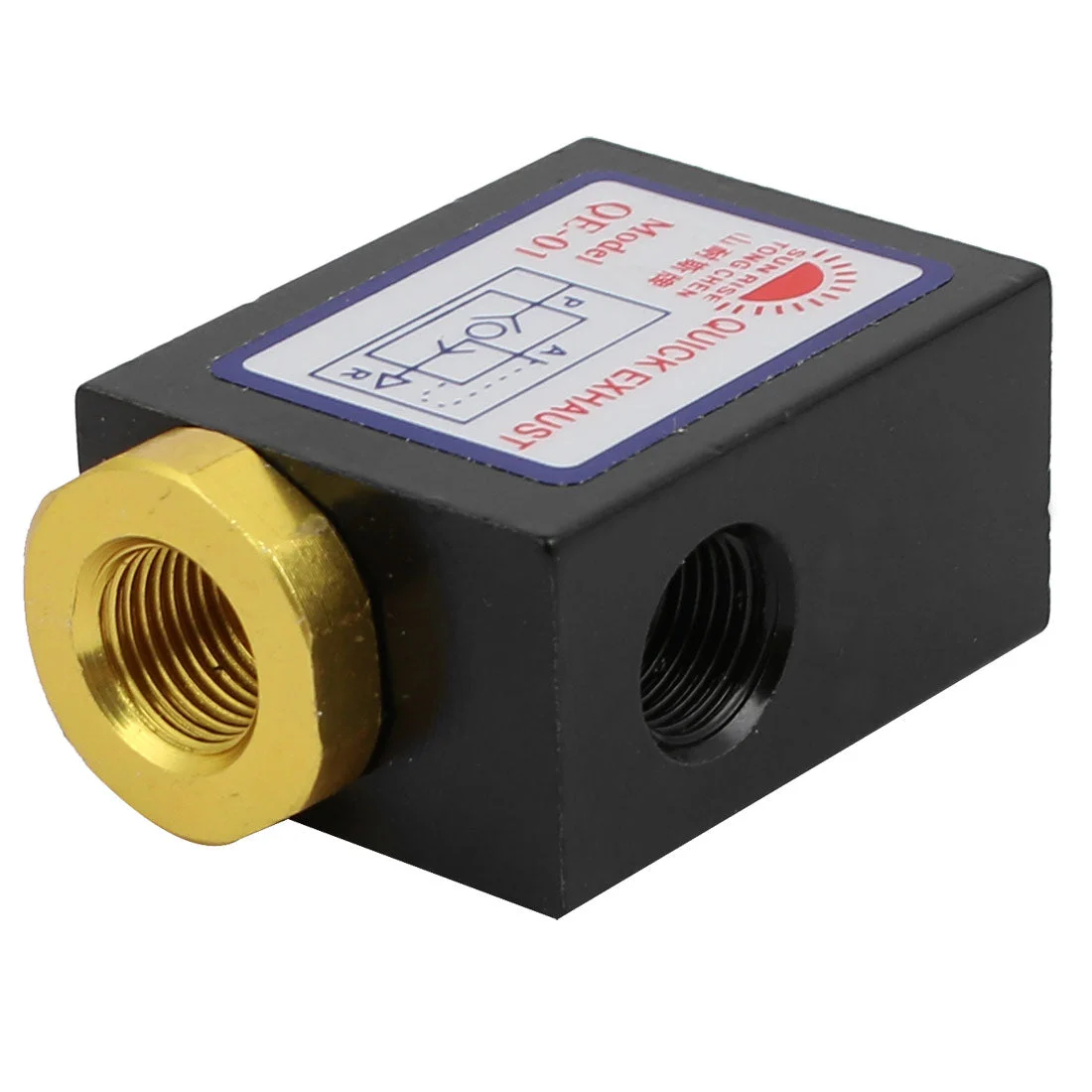

G1/8″ Female Thread Port One Way Pneumatic Quick Exhaust Valve 0.8MPa QE-01

About this item

• Product Name: Quick Exhaust Valve; Model: QE-01
• Female Thread Diameter: G1/8; Operating Pressure: 0 – 0.8MPa
• Working Temperature: 0 – 60 oC; Total Size: 39 x 27 x 18mm/ 1.5″ x 1.1″ x 0.71″ (L*W*T)
• Main Material: Aluminum Alloy; Color: Black, Gold Tone
• Weight: 46g; Package: 1 x Quick Exhaust Valve

It is a one-way directional control element, It is applied to places where the quick movement of air cylinder is required.
Normally installed between the air cylinder and change valve, making the air in the cylinder escape directly through this valve not through change valve.
