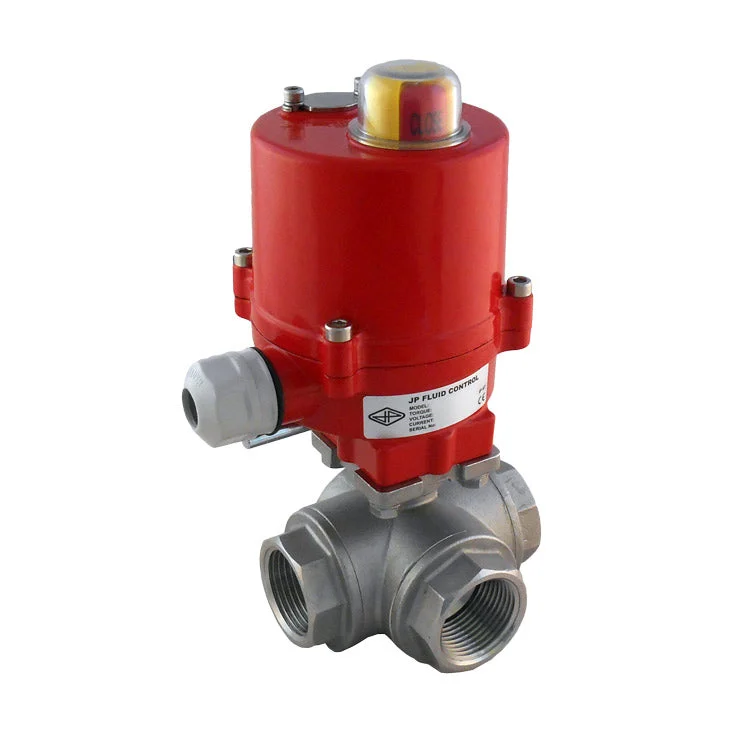

This strong and energy efficient 3-way (T-port) electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 1/4 inch pipe threads (internal thread, BSPP). The housing of the valve is made of brass with a hard chrome plated brass ball and PTFE (teflon)/NBR sealing. The actuator is suitable for both 24 volt DC (direct current) and 24 volt AC 50/60Hz (alternating current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 20 Nm torque. The valve rotates from 0 to 90 degrees in 4 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
Key benefits
- Robust brass ball valve with 1/4 inch pipe threads
- Switching time only 4 seconds
- Strong IP67 actuator housing
- Both 24V AC and DC possible (set by switch)
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Technical specifications
| Actuator | Ball Valve | ||
|---|---|---|---|
| Actuator ref: | AG-020-B | Ball Valve ref: | BL3BAT-014 |
| Voltage: | 24V DC/AC (50/60Hz) | Housing: | Brass (CW 617N) |
| Nom./Max. Current: | 0.2/1.2 A | Ball: | hard chrome plated brass |
| Protection: | IP67 | Seat rings: | PTFE (teflon)/NBR |
| Duty Cycle: | S2 30min. | Pipe threads: | G1/4″ BSP |
| Open/Close: | 4 s | Nominal Diameter: | 10mm (DN) |
| Amb. Temp.: | -10°C..50°C | Installation length: | 76 mm |
| Range: | 0-90° | Max pressure (@20°C): | 40 bar |
| Extra limit switches: | 2 | Function: | 3-way T-port |
| Manual override: | Yes | Temp medium: | -10°C..100°C |
Bore and circuit function
The ball has a T-port. By rotating the ball 90 degrees, can be switches between two circuits or can the three pipes be connected. The ports overlap during rotation.
Schematical drawing of the circuit function of T-port valves
Specifications
Connection size : 1/4 inch
Voltage : 24 V DC
Material : Brass
Max pressure difference (bar) : 40
Ball bore : T-port
Kv value [m3/h] : 5
Operating time (s) : 4
Connection type : Inner thread cylindrical BSPP-G
Ball valve feature : Fast running,Manual override
Min temperature (°C) : -10
Max temperature (°C) : 100
Max actuator torque (nm) : 20
Position feedback : None
Degree of protection (IP) : IP67
Spindle seal material : NBR (nitrile rubber)
Duty cycle : S2 30min
Surface protection : Nickel-plated
Nominal power (W) : 4.8
Valve bore (mm) : 10
Material ball seal : Teflon (PTFE)
Ambient temperature (°C) : -10 °C to 50 °C
Max. electric power input (VA) : 28.8
Manual override : Yes
Adjustable operating range : Yes
Transmission : With cogwheels
Width (mm) : 76
With end contacts : Yes
Voltage : 24 V DC
