About this item
- Light weight, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
- Nylon made, explosion-proof, heat and cold resistant.
- Four wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).
- The water flow sensor is applied for water heater, and can be used as flow switch.
- Maximum water pressure:1.75MPa, flow range: 1-30L/min.
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Four wire connection: Red for positive, black for negative, yellow for pulse signal, green for temperature signal(3950K 50K).
Specifications:

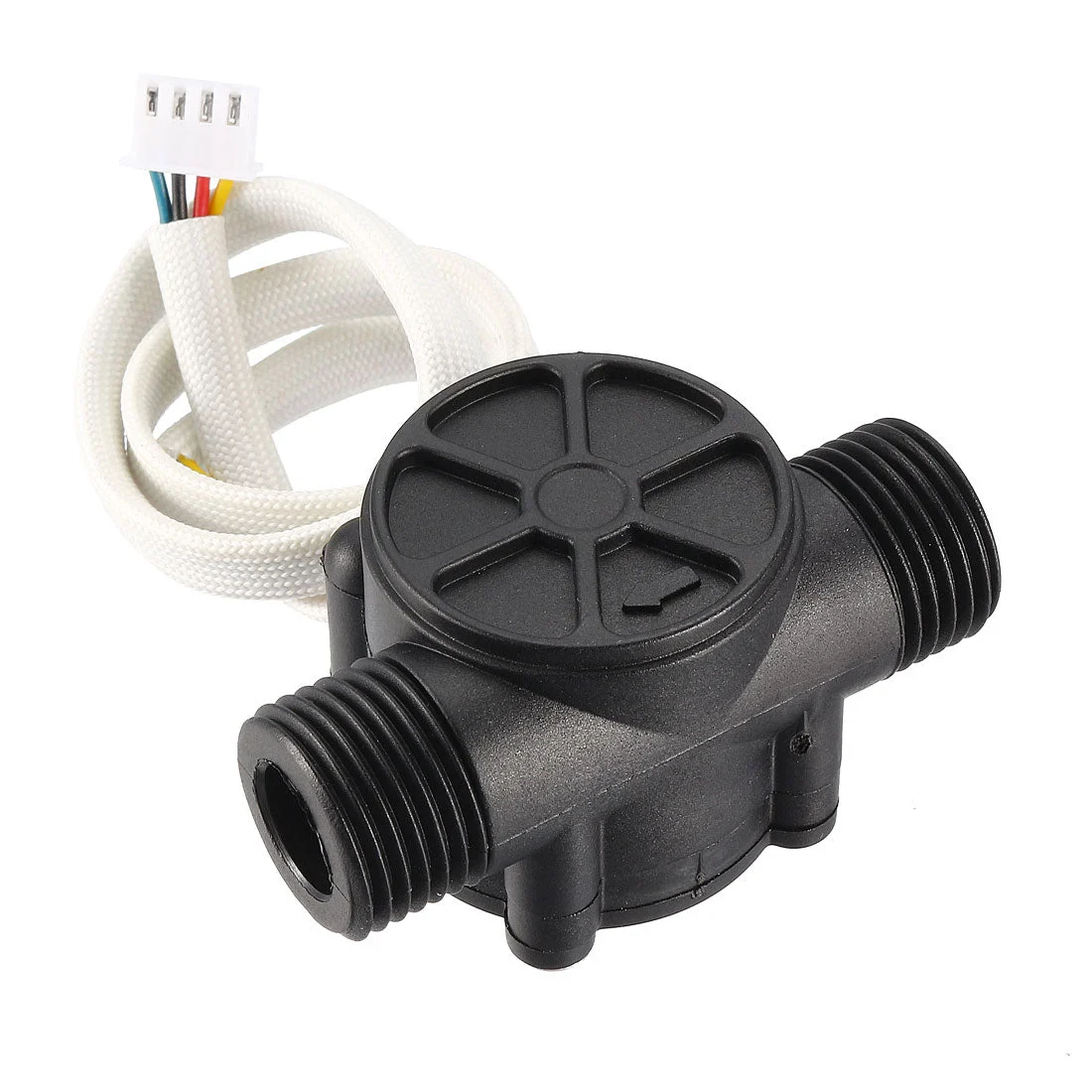

Product Name: Water Flow Sensor
Material: Nylon(Shell)
Size: 62mm x 36mm x 34mm / 2.44″ x 1.42″ x 1.34″(L*W*H)
Cable Length: 390mm / 15.35″
Liquid Temperature: Not More Than 60C
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 1.75MPa
Flow range: 1-30L/min
Connector: Male XH-4P
External Thread Diameter: G1/2
Ingress Protection Rating: IP65
Color: Black
Net Weight: 58g
Package Included:
1 x Water Flow Sensor
Note:
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
