About this item
- Light weight, small size, easy to install.
- Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, ect.
- Water Flow Switch adopts a Magnetic Reed Switch
- G1/2 male threaded ports each end.
- Maximum water pressure: 1.5MPa, flow range: 1-25L/min.
1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end.
2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.
Specifications:

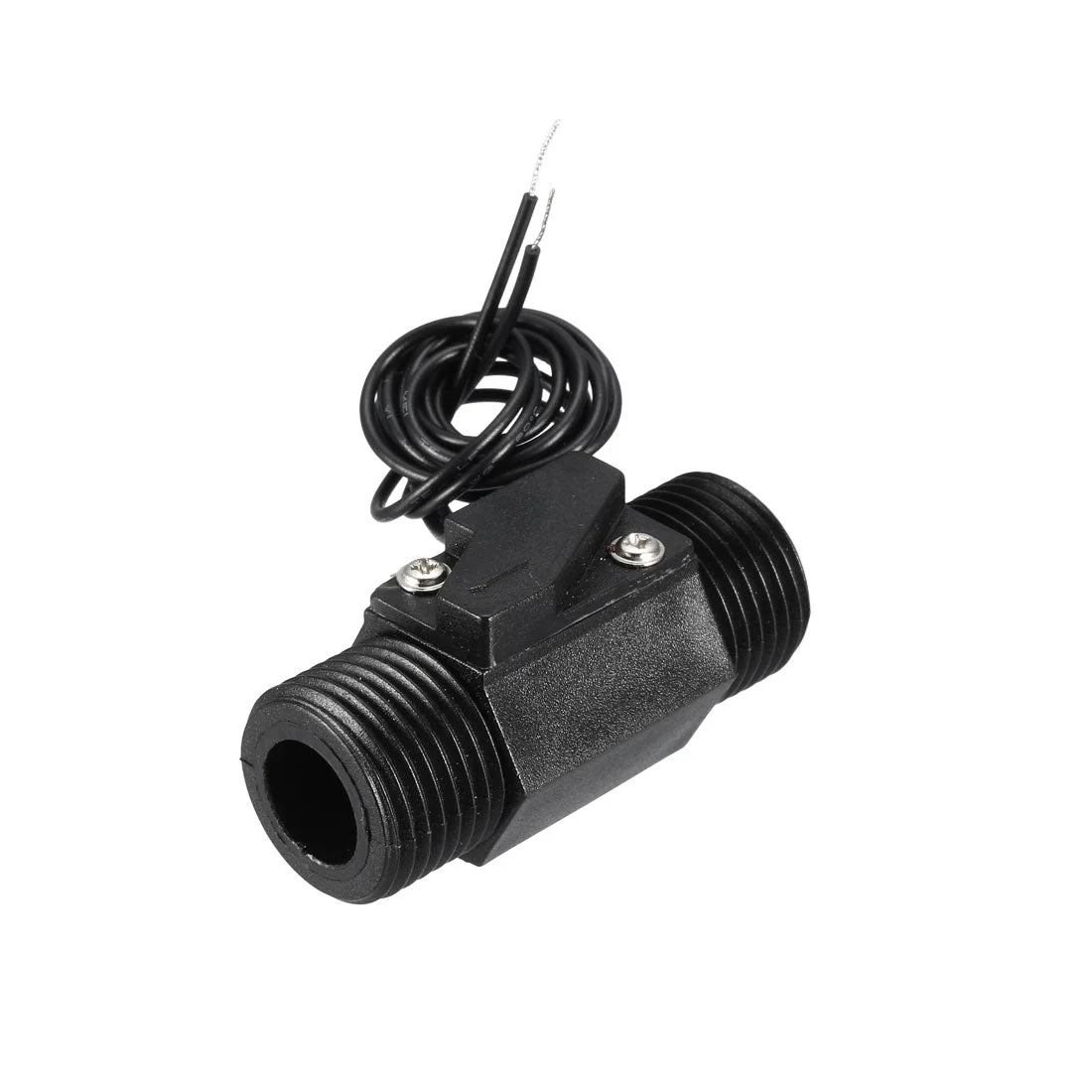

Product Name: Water Flow Switch
Material: Plastic(Shell)
Size: 53mm x 25mm x 26mm / 2.09″ x 0.98″ x 1.02″(L*W*H)
Cable Length: 370mm / 14.57″
Working Voltage: DC 0-110V
Maximum Switching Current: 0.5A
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum Load Power: 10W
Maximum water pressure: 1.5MPa
Flow range: 1-25L/min
Male Thread Diameter: G1/2
Ingress Protection Rating: IP65
Color: Black
Net Weight: 22g
Package Included:
1 x Water Flow Switch
Note:
1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the switch, in order to avoid particles and debris entering the switch.
