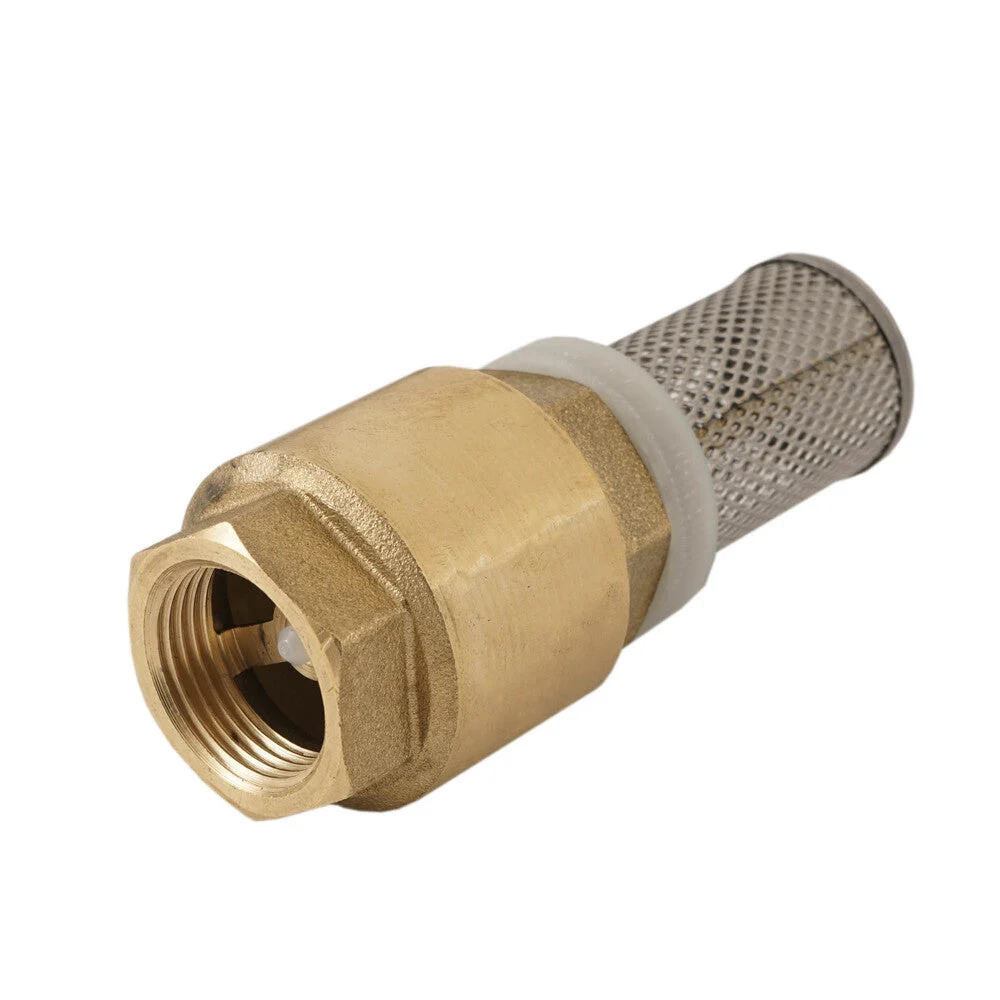

This foot valve has a connection of G1-1/2inch (female thread BSP). A foot valve is placed on the bottom of a suction pipe, and prevents the pipe from draining when the pump is switched off. The pump starts better with a filled suction pipe. The foot valve consists of a non-return valve in combination with a filter. The filter makes sure that dirt particles cannot reach the pump. The non-return valve is made of brass. The filter has a nylon thread and a stainless steel mesh.
Specifications
Connection size : 1 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Min temperature (°C) : -20
Max temperature (°C) : 60
Filter size (µm) : 1
Min opening pressure (bar) : 0.02
Valve bore (mm) : 32
Height (mm) : 66
