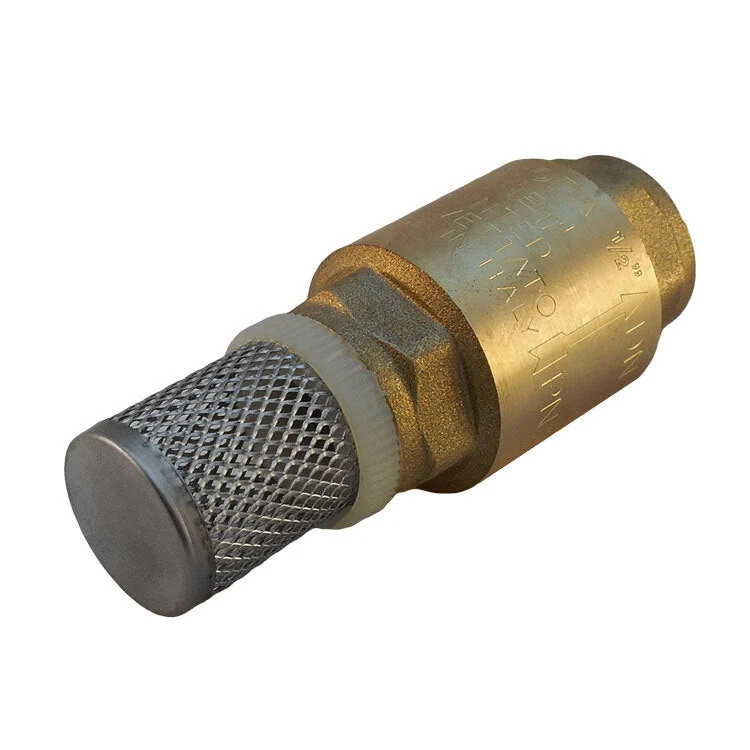

This foot valve has a connection of G3/4inch (female thread BSP). A foot valve is placed on the bottom of a suction pipe, and prevents the pipe from draining when the pump is switched off. The pump starts better with a filled suction pipe. The foot valve consists of a non-return valve in combination with a filter. The filter makes sure that dirt particles cannot reach the pump. The non-return valve is made of brass. The filter has a nylon thread and a stainless steel mesh.
Specifications
Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : Teflon (PTFE)
Recommended for : Water,Oil,Fuel,Solvents,Alcohols,Lubricant
Max temperature (°C) : 90
Filter size (µm) : 1
Valve bore (mm) : 20
Height (mm) : 70.5
