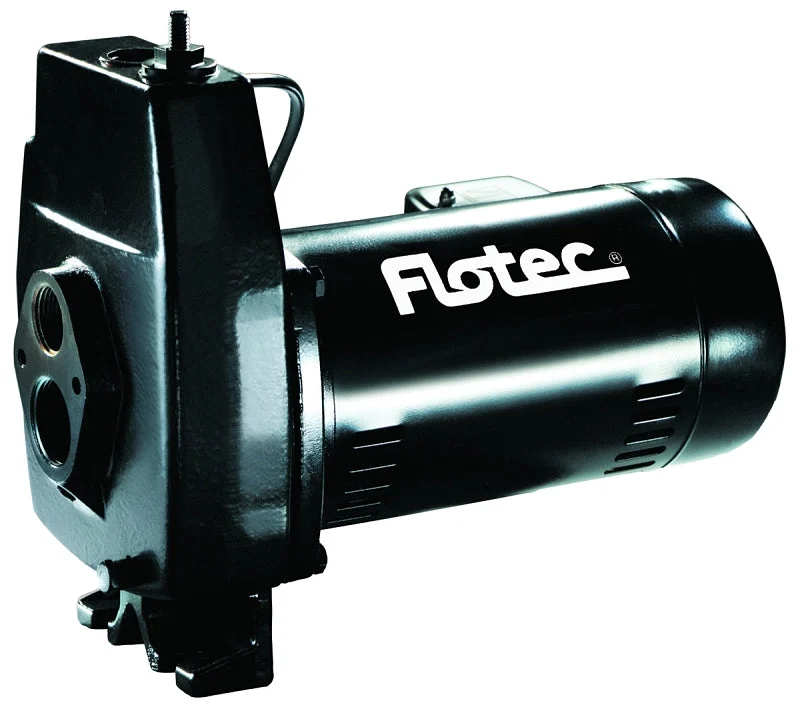

Flotec FP4222-08 Jet Pump, 6.1/12.2 A, 115/230 V, 0.75 hp, 1-1/4 in Suction, 1 in Discharge Connection, 100 ft Max Head

Rugged cast iron construction. Superior performance at depths to water of 100 ft or less. 1/2 hp pumps up to7.9 gpm. 3/4 hp pumps up to 11.8 gpm. Heavy-duty dual voltage motor 1/2 hp preset at 115 V, 3/4 hp preset at 230 V. Prewired pressure switch preset for 30/50 psi operation. Self-priming after pump housing is initially filled. Built-in pressure regulator. CSA certified. Jet kit sold separately.
Unit: EA
UPC: 022315100640
Model Number: FP4222-08

Features

• Superior performance at depths to water of 100 ft or less
• Rugged, heavy duty pump housing
• Ready-to-install 230 V motor – see manual for 115 volt conversion
• Pressure switch pre-wired with 30 – 50 psi pressure setting

Additional Information

• Connection Size: 1-1/4 in Suction 1 in Discharge
• Connection Type: NPT
• Current Rating: 6.1/12.2 A
• Flow Rate: 7.5 gpm
• Frequency Rating: 60 Hz
• HP Rating: 0.75 hp
• Includes: Factory-Installed 30/50 Preset Pressure Switch
• Material: Iron
• Maximum Head: 100 ft
• Motor Type: Dual Voltage
• Pressure Rating: 60/54 psi
• Suitable for: Deep and Shallow Wells
• Voltage Rating: 115/230 V
