Flexible Flat Ribbon Cable with Converter Board 0.3mm 31P 60mm DIP 2.0mm 2.54mm

About this item

• [SPECIFICATION]: 31 pin 0.3mm pitch; Flat Cable Length: 60mm; A type(Pin on the Same Side); Cable Size: 60 x 10 mm / 2.36 x 0.39 inch(L*W) ; Board Size: 67 x 30 x 1.15 mm / 2.64 x 1.18 x 0.05 inch (L*W*H).
• [APPLICATION]: Applying to various of the LCD screen, such as digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc..
• [ADVANTAGE]: The term FFC(Flexible Flat Cable) usually refer to the extremely thin flat cable often found in high density electronic applications.
• [STRUCTURE]: The cable usually consists of a flat and flexible plastic film base, with multiple metallic conductors bonded to one surface.
• [FEATURE]: The each end cable is reinforced with a stiffener to make insertion easier.

Description:

The term FFC(Flexible Flat Cable) usually refer to the extremely thin flat cable often found in high density electronic applications.

The each end cable is reinforced with a stiffener to make insertion easier.

The stiffener makes the cable slightly thicker.

Applying to various of the LCD screen, such as digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Note:

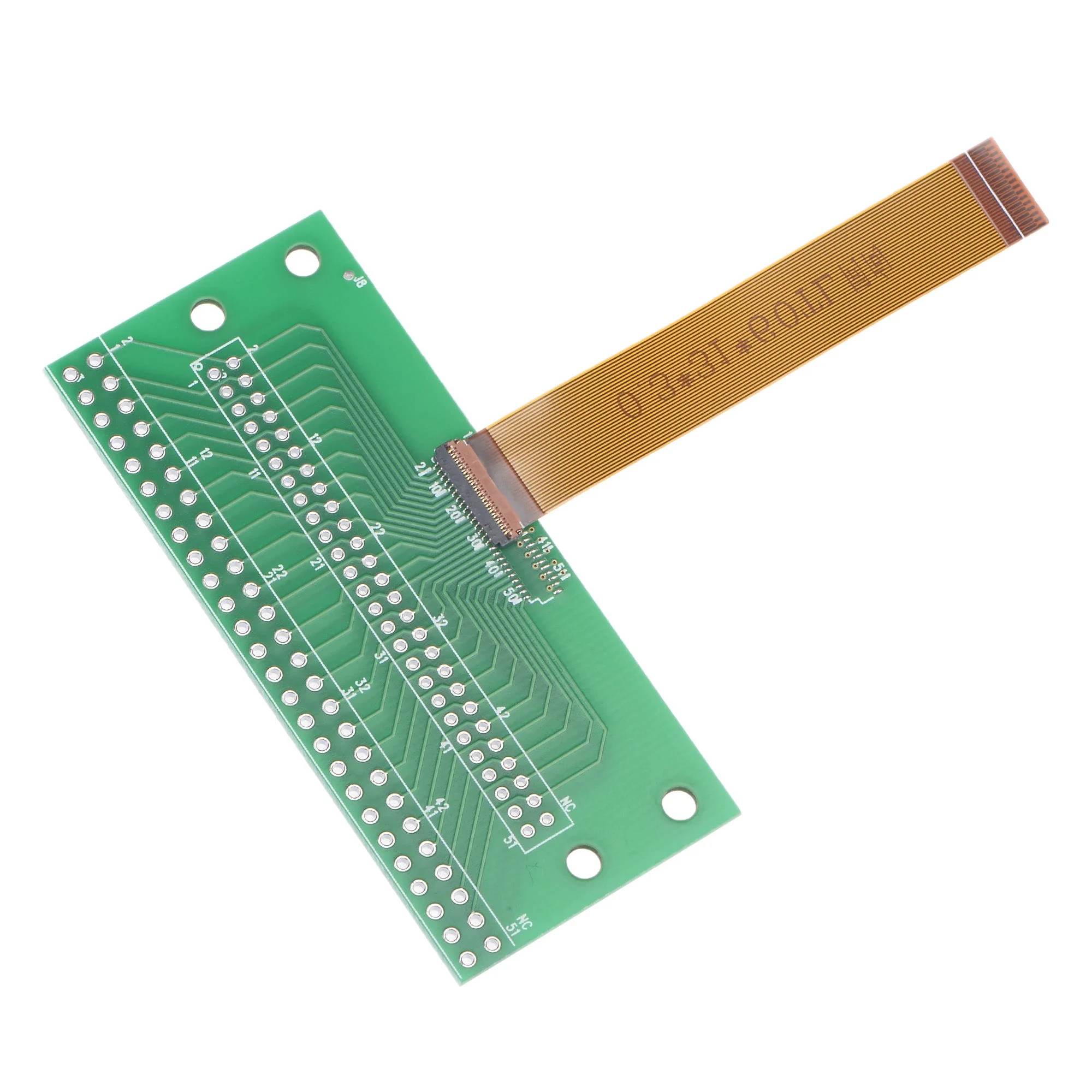

The carrying board is original for a 51 pin seat, but the board you will purchase is ready for a 31 pin converter seat.

Specification:

FPC Type: A type (Pin on the Same Side)

Pins: 31 Pin

Pitch: 0.3mm

Flat Cable Length: 60mm

External Material: Plastic

Cable Color: Brown, Copper Tone

Board Color: Green

Cable Size: 60 x 10 mm / 2.36 x 0.39 inch(L*W)

Board Size: 67 x 30 x 1.15 mm / 2.64 x 1.18 x 0.05 inch (L*W*H)

Package Content :

1 x  FPC Extension Connector with Flat Cable
