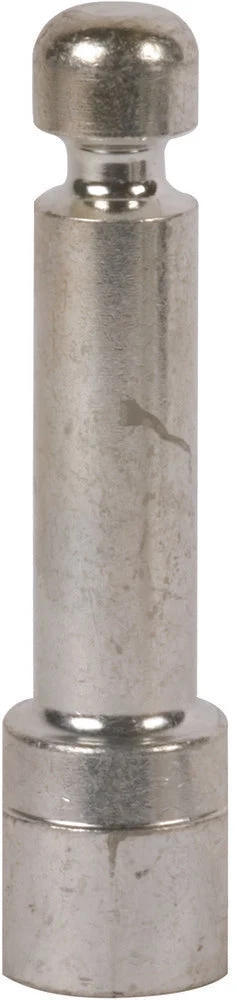

This earth-side fixed point, with a diameter of 16mm, includes a ring groove and features internal threading. It is designed for use in compliance with EN/IEC 61230 (DIN VDE 0683-100) in the earthing system. The device can handle a maximum short-circuit current of 42kA and is straight built. The fixed point allows for an earth and ring groove connection of 16mm, and can accept a maximum wire cross-section of up to 150mm² for copper. It is recognized for its high mechanical strength due to its non-cutting form thread.
Specifications
Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : With internal thread
Connection of the earthing and short circuit device : Radial groove 16 mm
Max. wire cross section copper (mm²) : 150
Diameter fixed point (mm) : 16
Suitable for round conductors : No
