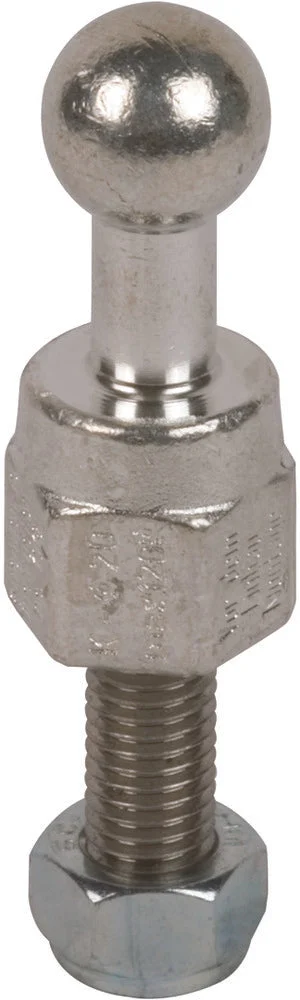

The described item is a straight fixed ball point with threaded pin and nut. It is designed for use as the phase-side and earth-side point of connection, in compliance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. This component provides high mechanical strength, as the thread is not cut. The straight fixed ball point is suitable for securing cable lugs or connecting busbars following DIN 43673-1. With a maximum short circuit current of 33.5kA, it comes in a straight form with threaded bolt and an earthing and short circuit point measuring 20mm in diameter. The maximum wire cross-section for copper is 120mm².
Specifications
Max. short circuit current (kA) : 33.5
Construction type : Straight
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Fixed ball point 20 mm
Max. wire cross section copper (mm²) : 120
Diameter fixed point (mm) : 20
Suitable for round conductors : No
