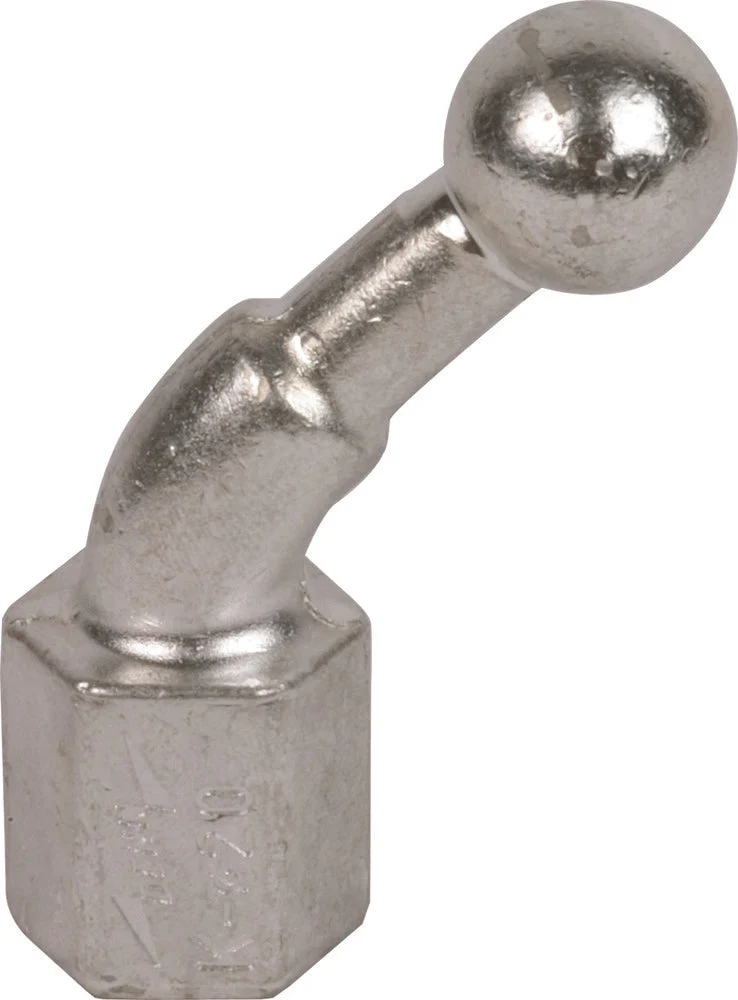

Fixed Ball Point D25mm Angled 45 Degrees With M16 Female Thread – 756600

This item is a 45° angled fixed ball point featuring a female thread suitable for line and earth connection in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. It exhibits high mechanical strength due to uncut female thread, making it ideal for securing cable lugs or connecting busbars as per DIN 43673-1. The maximum short-circuit current is rated at 26.5kA and the maximum wire cross-section for copper is 95mm². It can accommodate an earth and a solid ball point connection of 25mm in diameter.

Specifications

Max. short circuit current (kA) : 26.5
Construction type : Angled
Mounting method : With internal thread
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : No
