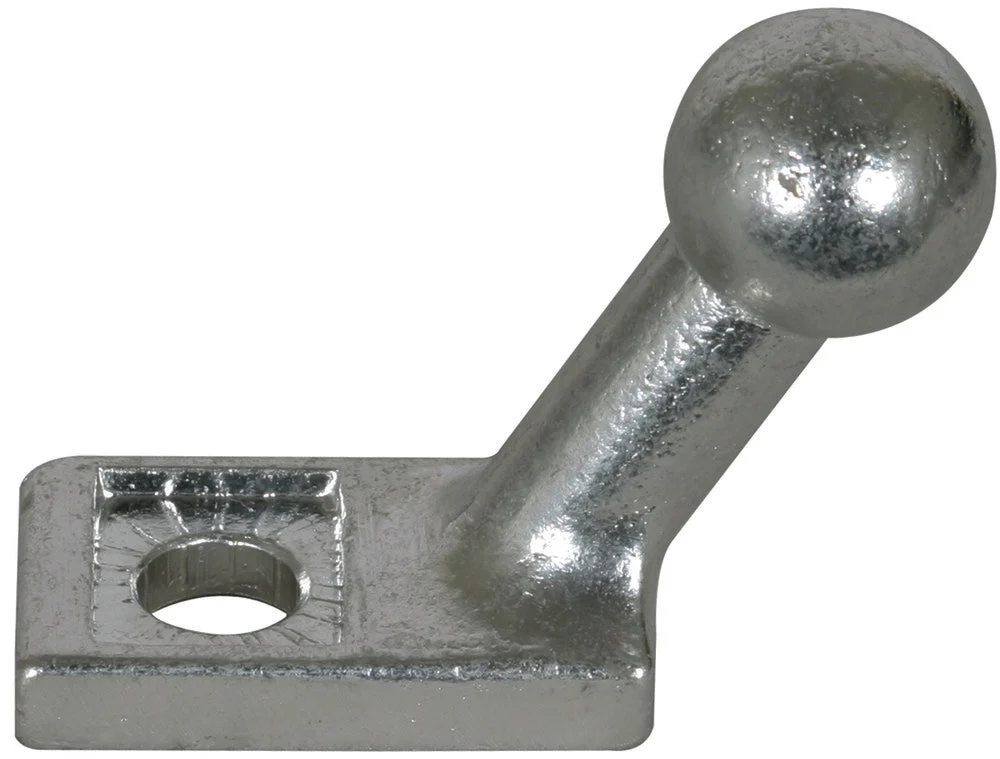

Fixed Ball Point D 25mm Angled With Connection Lug – 756300

This is a fixed ball point with a terminal lug, angled for use as a line and earth connection point in line with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and earth-termination system. It boasts high mechanical strength due to its female thread, which is not cut, which makes it suitable for fixing cable lugs or connecting busbars as per DIN 43673-1. Able to withstand a maximum short-circuit current of 26.5kA and featuring a connection point diameter of 25mm, it facilitates a maximum wire cross-section for copper of 95mm².

Specifications

Max. short circuit current (kA) : 26.5
Construction type : Angled
Mounting method : With connector lug
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : No
