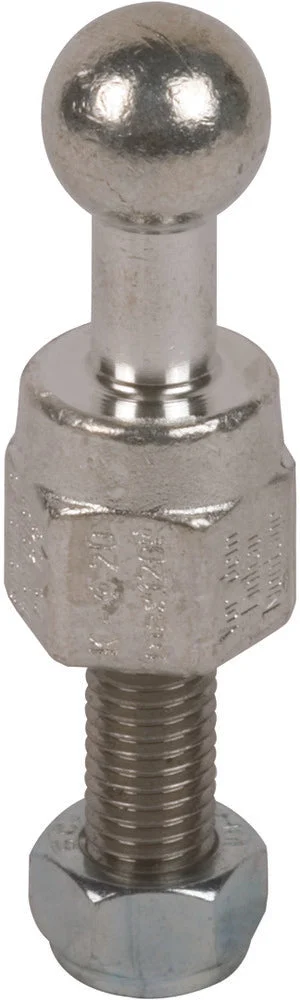

This is a straight fixed ball point featuring a threaded pin and nut, suitable for use as both a phase-side and earth-side connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. Showcasing high mechanical strength, the thread on this item is not cut, making it ideal for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can endure a maximum short circuit current of 33.5kA, boasts a straight design form, and is fitted with a 20mm grounding and short-circuit connection point. The maximum cross section for copper is 120mm², and the point diameter is a reliable 20mm.
Specifications
Max. short circuit current (kA) : 33.5
Construction type : Straight
Mounting method : With thread bolt
Connection of the earthing and short circuit device : Fixed ball point 20 mm
Max. wire cross section copper (mm²) : 120
Diameter fixed point (mm) : 20
Suitable for round conductors : No
