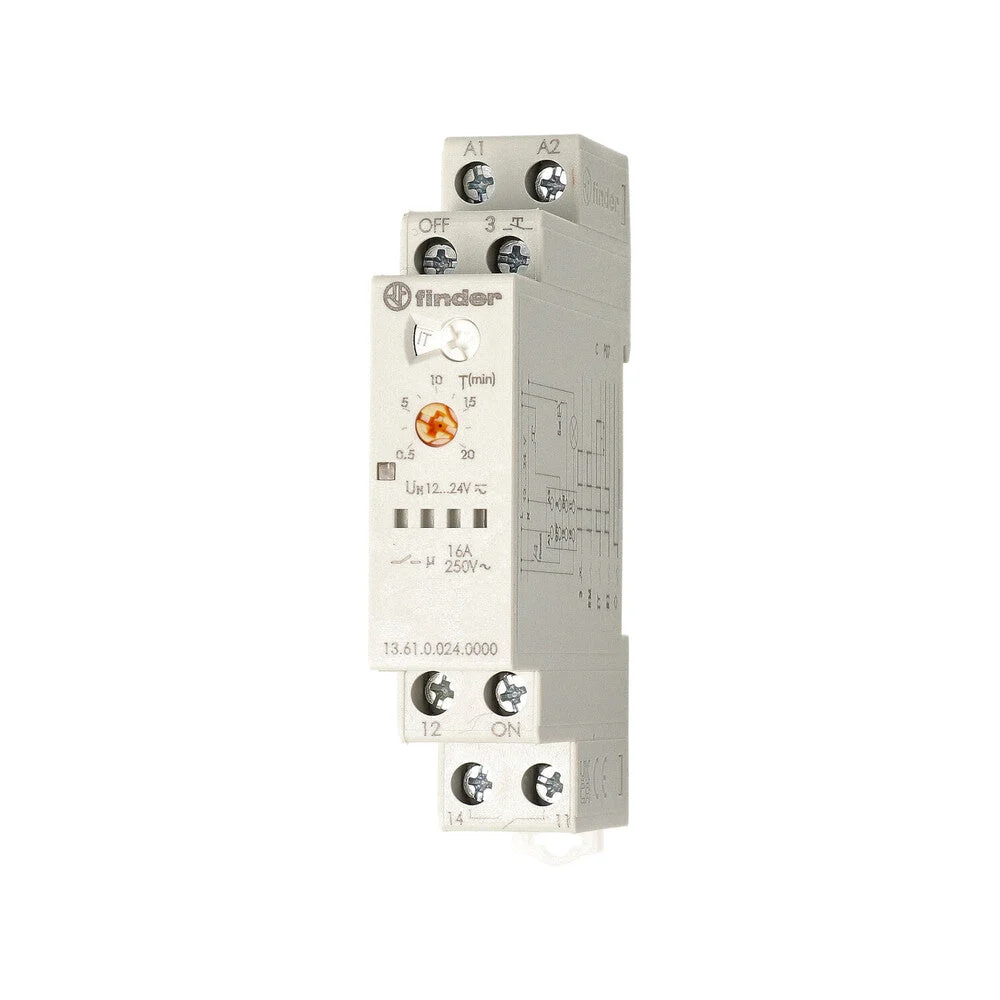

Finder 13 Bistable Relay – 13.61.0.024.0000

Finder 13 bistable relay, (wxdxh) 17.5x61x88mm, coil voltage 1 10.2 – 26.4V, coil voltage type 1 AC/DC, supply voltage 12 – 24V, DIN rail, 1 make contact, nom. (measuring) switching current 16A, coil voltage type 2 DC, 1 module 18mm (TE), width in module units 1, central control on and off.

Specifications

Function : Electronic switch
Mounting method : DIN rail
Width in number of modular spacings : 1
Built-in depth (mm) : 60.8
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 10.2 V to 26.4 V
Type of control voltage 1 : AC/DC
Frequency control voltage 1 (Hz) : 50 Hz to 60 Hz
Control voltage 2 (V) : 12 V to 24 V
Type of control voltage 2 : DC
Frequency control voltage 2 (Hz) : 0 Hz to 0 Hz
Rated switch current (A) : 16
Supply voltage (V) : 12 V to 24 V
Voltage type of supply voltage : AC/DC
Max. incandescent lamp load (W) : 2000
Max. load fluorescent lamp (VA) : 1000
Max. load fluorescent lamp (Duo circuit) (VA) : 750
Max. load fluorescent lamp (parallel compensated) (VA) : 750
Max. switching current (cos phi = 0.6) (A) : 18
Manual override : No
