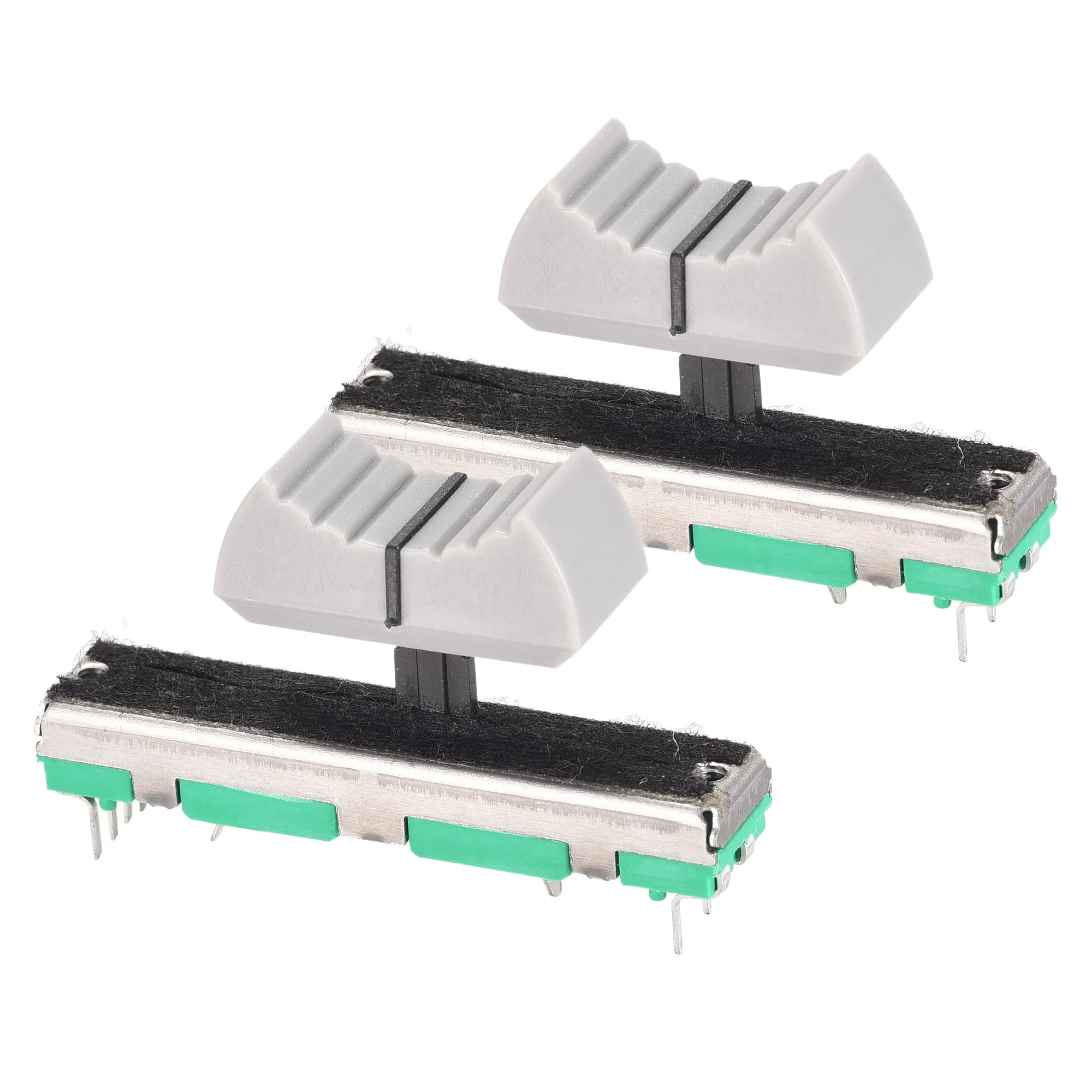

Fader Variable Resistors Mixer 45mm Straight Slide Potentiometer B10K Ohm Dual Channel Potentiometers With Knobs 2pcs

About this item

• Model: B type Linear Potentiometers, Can be used in Dimming Tuning
• Double Connection, Two-channel, Body Size:45mm*9.4mm*7mm (+/-2mm) (L*W * H)；Shaft Size: 10*4mm (L* W)
• Feature: Linear potentiometer, the resistance has been changing linearly during the pushing process
• Resistance Value: 10K ohm, Tolerance: +/-10%, Knob size : 23.7mm*11.5mm*11mm (L*W * H)
• Suitable for mixer, electronic guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.

Description:

1.Double Connection, Two channel

2. Linear potentiometer, the resistance has been changing linearly during the pushing process

Specifications:

Product Name: Potentiometer with Knobs

Knobs Color: Grey Black

Model: B type Linear Potentiometers

Resistance Value: 10K ohm

Channel: Double Channel

Tolerance: +/-10%

Terminals Number: 6+2

Body Size:45mm*9.4mm*7mm (+/-2mm) (L*W * H)

Shaft Size: 10*4mm (L* W)

Knob size : 23.7mm*11.5mm*11mm (L*W * H)

Package Content :

2pcs x Straight Slide Potentiometer / 2pcs x knob
