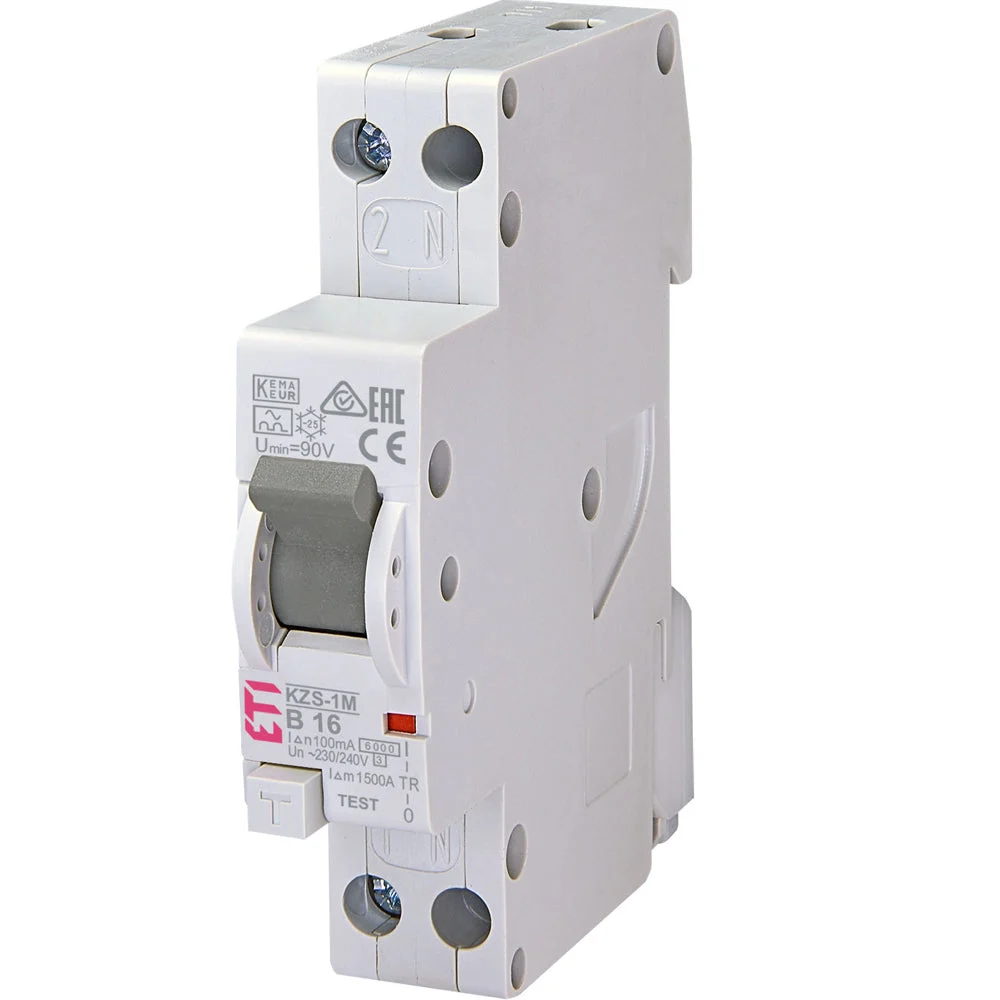

ETI Elektro Element Ground Fault Circuit Interrupter – 432000224

Eti Elektro Element earth leakage circuit breaker 1, trip characteristic B, type leakage current A, nom. (measuring) current 16A, co-switching neutral, nominal fault current 0.1A, nominal breaking capacity EN 60898 6kA, 2 poles (total), width in module units 1, switching characteristic undelayed.

Specifications

Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated current (A) : 16
Rated fault current (A) : 0.1
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 6
Voltage-type : AC
Frequency : 50/60 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 1
Built-in depth (mm) : 69
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 10 mm²
