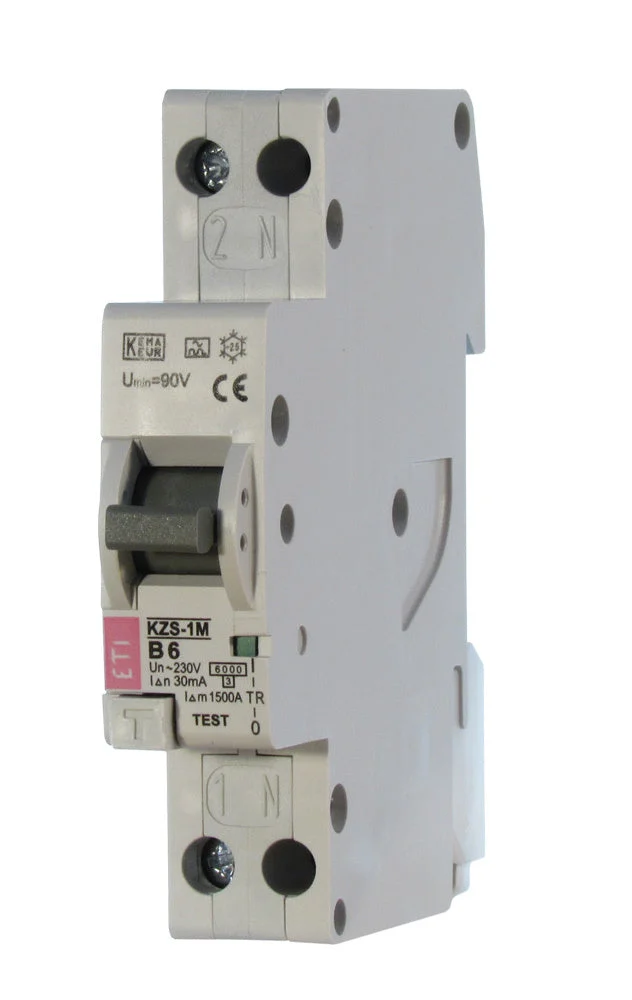

ETI Elektro Element Ground Fault Circuit Interrupter – 432000204

Eti Elektro Element earth leakage circuit breaker, trip characteristic B, type leakage current A, nom. (measuring) current 16A, co-switching neutral, rated fault current 0.03A, rated breaking capacity EN 60898 6kA, 2 poles (total), width in module units 1, switching characteristic undelayed.

Specifications

Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 240
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Disconnection characteristic : Undelayed
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 1
Built-in depth (mm) : 69
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 10 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 10 mm²
